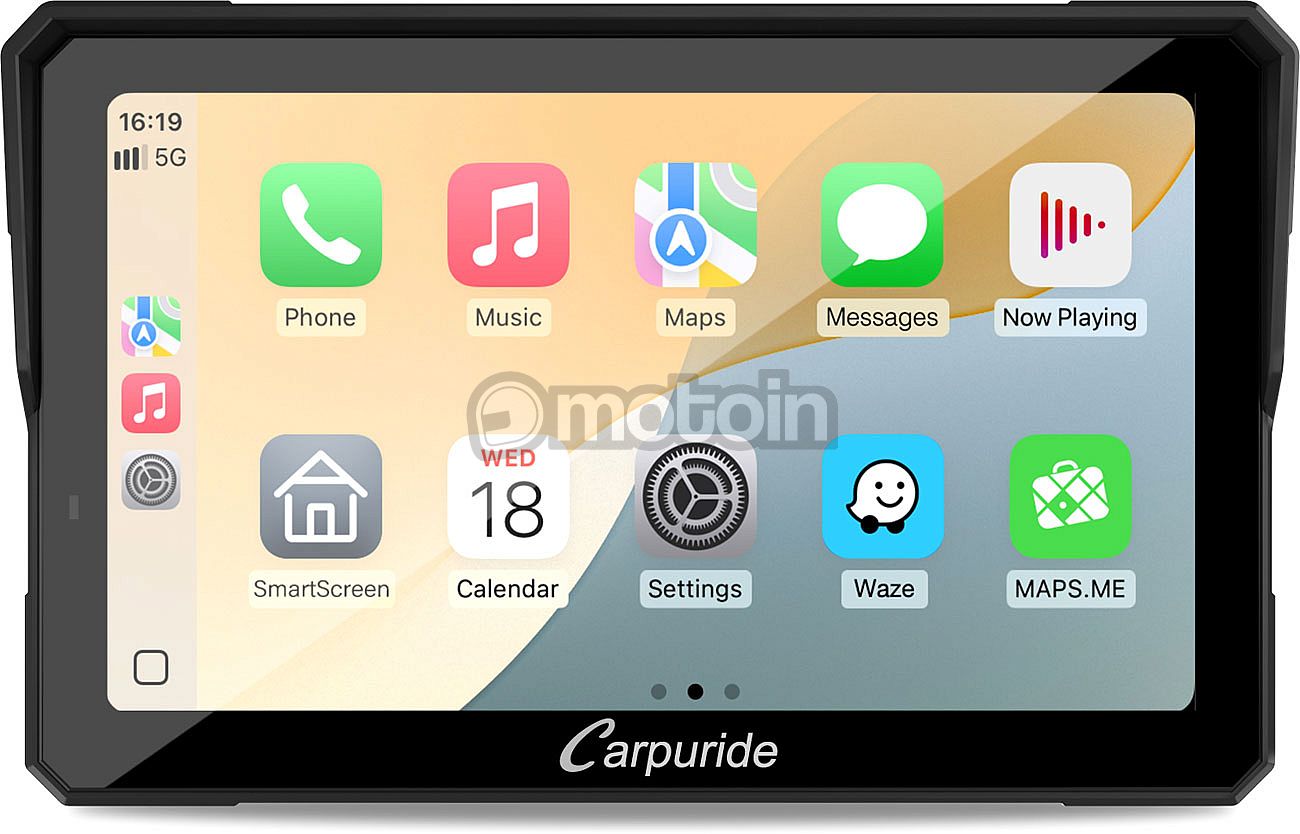

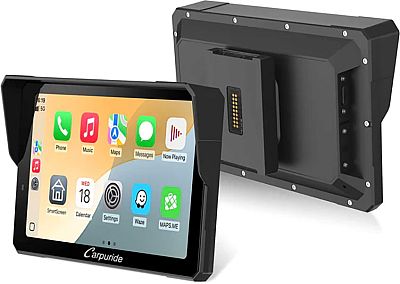

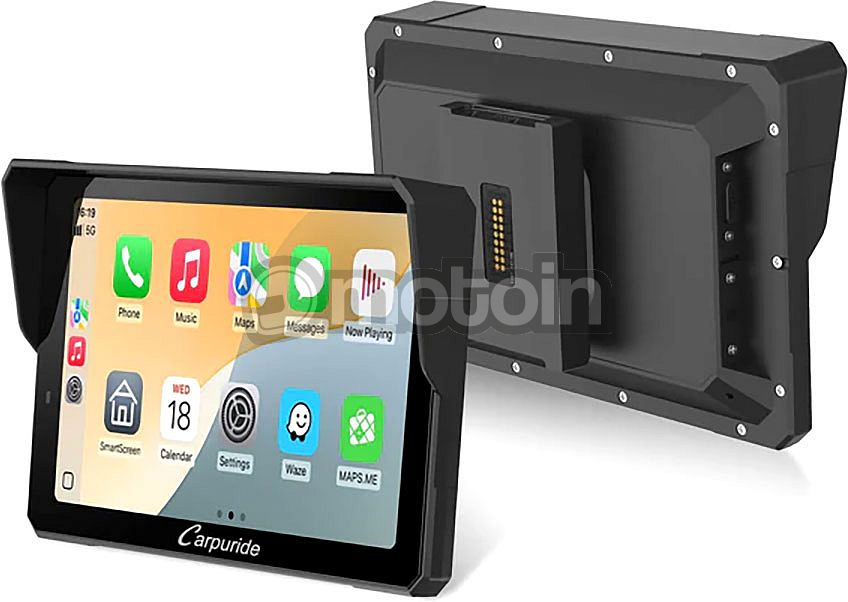

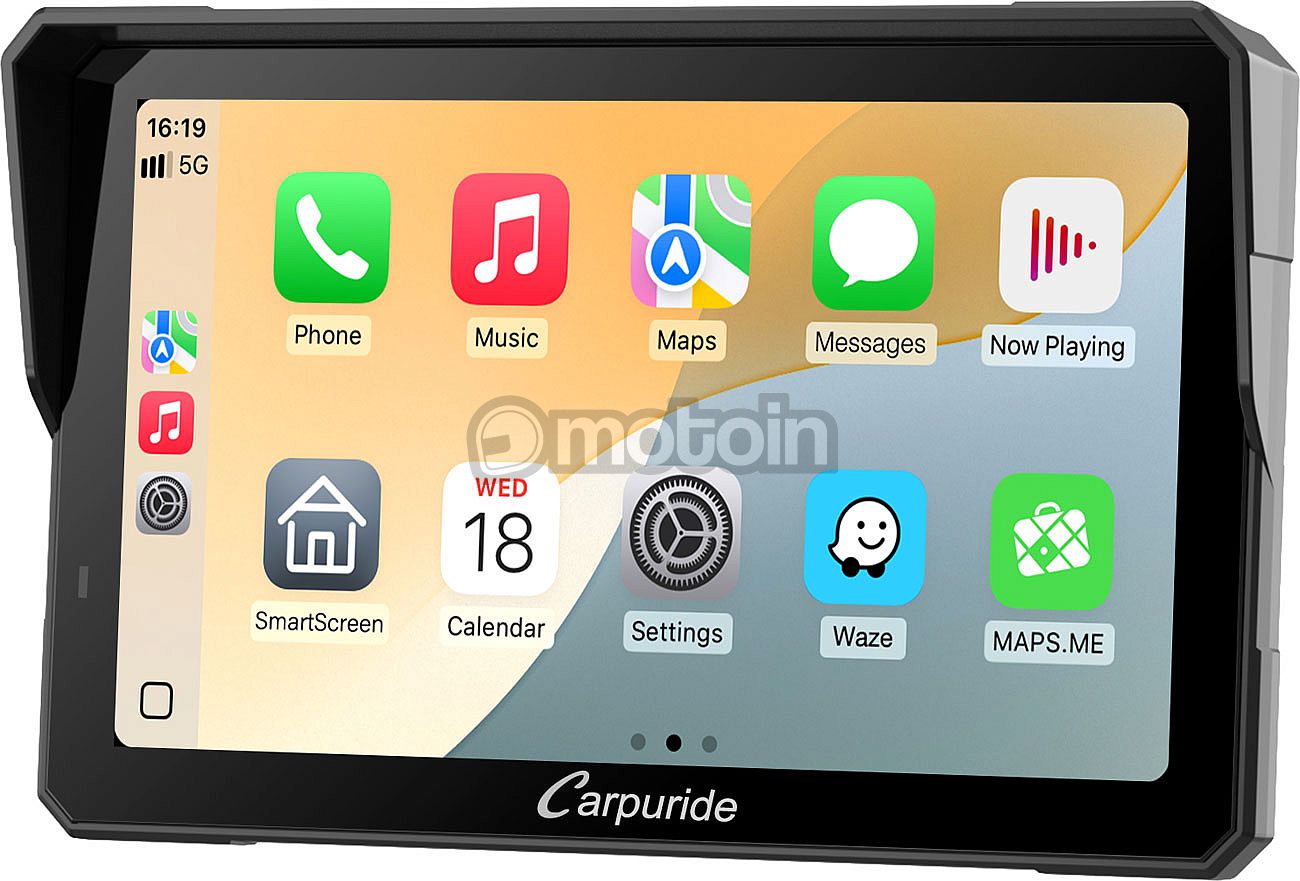

Carpuride W702BS BMW, smart display

Apple CarPlay & Android Auto, BMW Wonder Wheel compatible

Premium wireless CarPlay and Android Auto designed for BMW motorcycles. Native Wonder Wheel control, dual Bluetooth, and real-time bike data integration.

Designed for BMW Motorcycles - Wonder Wheel Control + Real Time Bike Data + TPMS Display + Plug-and-Play.

The only aftermarket CarPlay system that works with your BMW's original Wonder Wheel and Multi-Controller. Available in 7" (W702BS) and 5" (W502BS) sizes.

It is being fully featured with the following capabilities

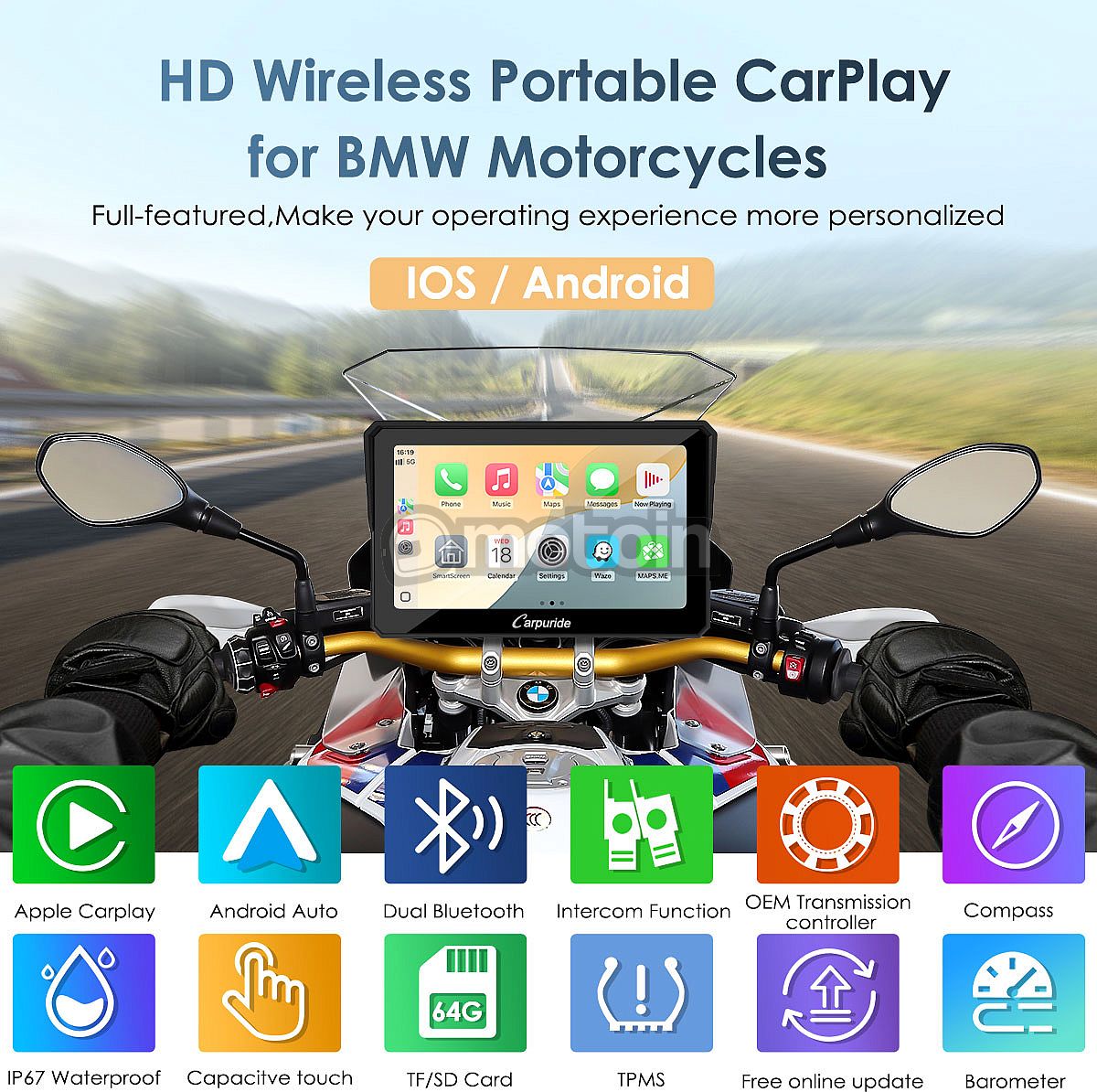

• Supports Wireless Connections: Apple CarPlay & Android Auto / Bluetooth Transmitter
• Screen: 7-inch HD IPS capacitive Screen
• Enhanced Control Compatibility: Effortlessly switch music tracks and view essential data like speed, engine RPM, and mileage, enhancing your riding convenience. (Note: Compatibility requires a pre-installed original navigation bracket specific to your motorcycle model.)
• Multimedia Playback: TF card input port
• Built-in: 5G WiFi + Bluetooth transmitter
• Audio output: Bluetooth Audio and Bluetooth transmitter（Single-person Connection Mode and Two-person Connection Mode）
• Intercom function: Connecting two earphones to our device simultaneously enables music sharing between two riders or use the intercom function (Note: Intercom mode and BT trans mode cannot be used at the same time. Only one of them can be used at a time.)
• Compass & Barometer: When you ride and explore outdoors, you often face the situation of getting lost and not knowing the altitude. Our compass function and barometer measurement function keep you safe while riding.
• Light-sensing: The light-sensing design enables automatic adjustment of screen brightness based on the surrounding ambient brightness, ensuring eye protection and promoting safer driving conditions.
• Waterproof grade: IP67

Technical Specifications

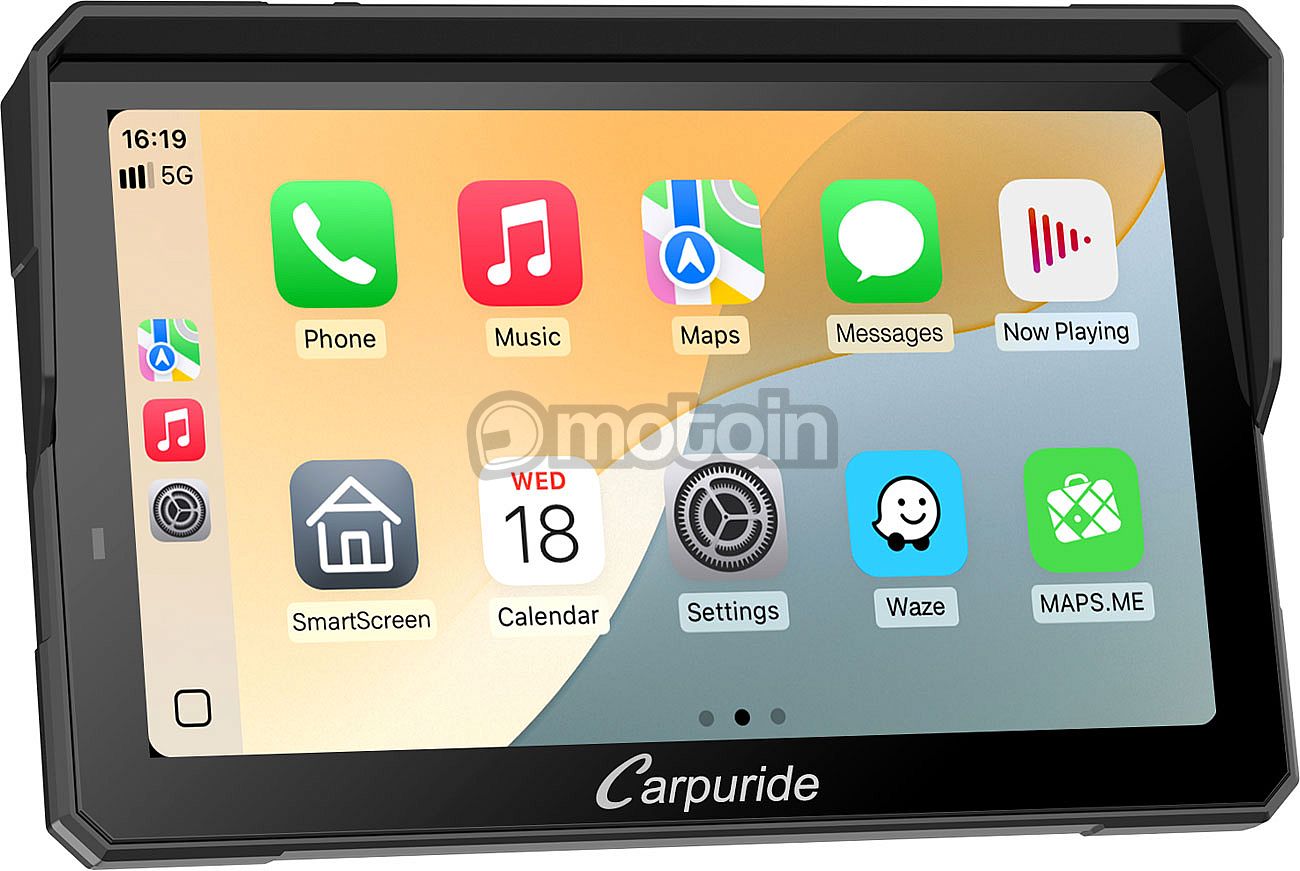

• Display: 7-inch IPS touchscreen, 2.5D curved glass, 1000 nits brightness (sunlight readable)
• Connectivity: Wireless CarPlay, Android Auto, Dual Bluetooth 5.0
• BMW Integration: Native Wonder Wheel control, TPMS display, bike data integration
• Waterproof: IP67 rated (submersible up to 1 meter for 30 minutes)
• Audio: Dual Bluetooth with intercom function
• Storage: TF/SD card support (64GB included, expandable to 256GB)
• Sensors: Compass, barometer, automatic light sensor
• Power: BMW original navigation bracket
• Installation: Plug-and-play with BMW original navigation mount (no wiring required)
• Updates: Free online OTA updates
• Special Features: Wonder Wheel control, TPMS, SOS, dual Bluetooth, intercom, compass, barometer

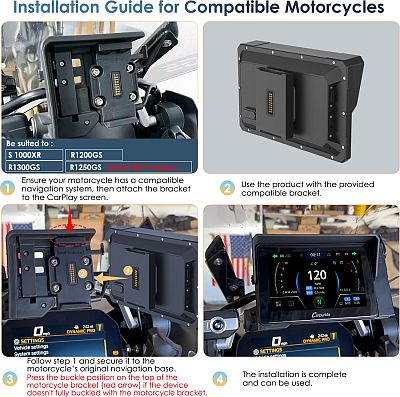

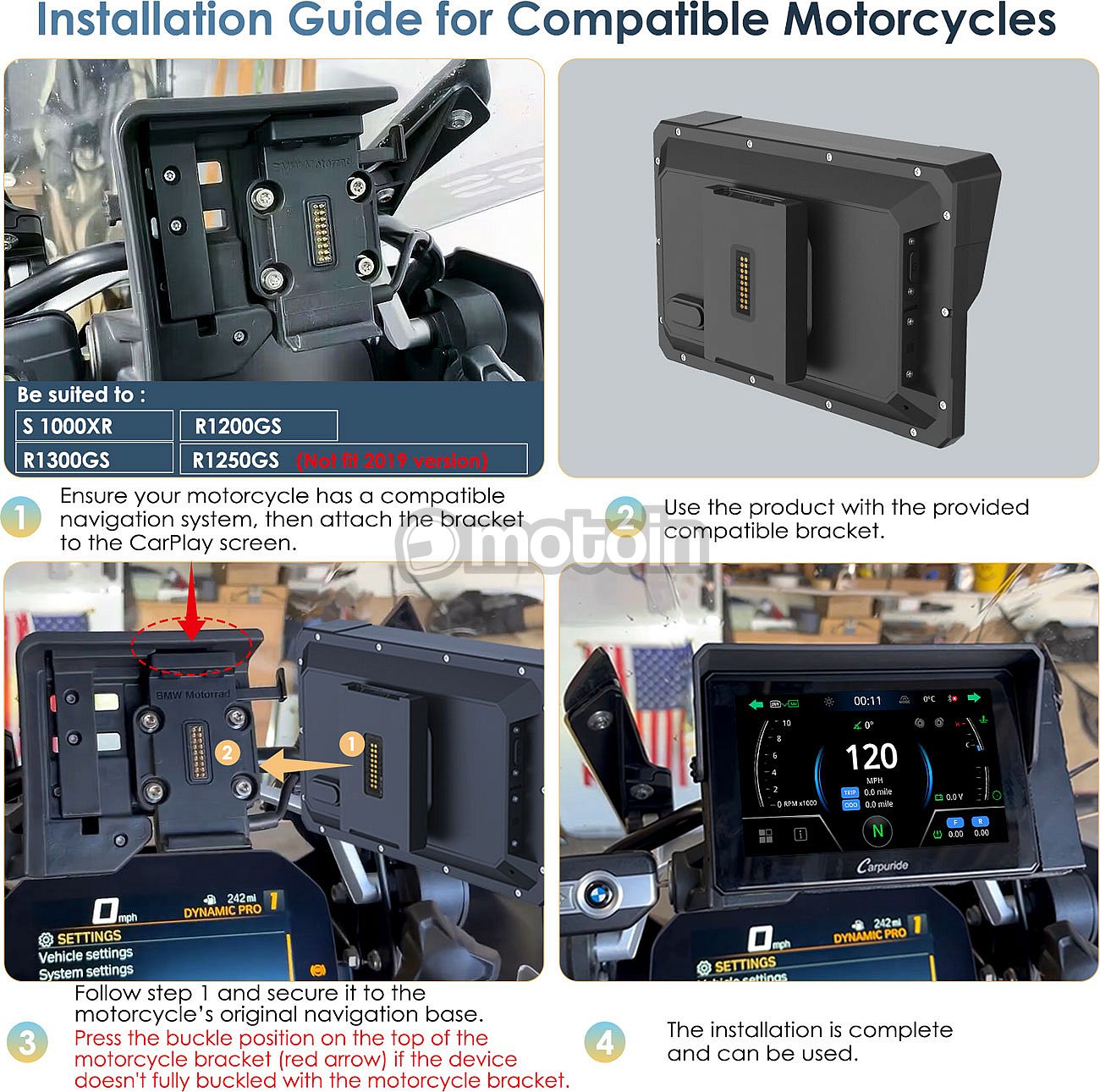

Installation in 4 Easy Steps

• Prepare: Ensure BMW has original navigation mount on dashboard
• Align: Match bracket connector with OEM mount
• Insert: Snap W702BS/502BS into mount until click
• Connect: Plug power cable - ready to ride!
• No wiring required! The W702BS/502BS connects directly to your BMW's existing mount and power system

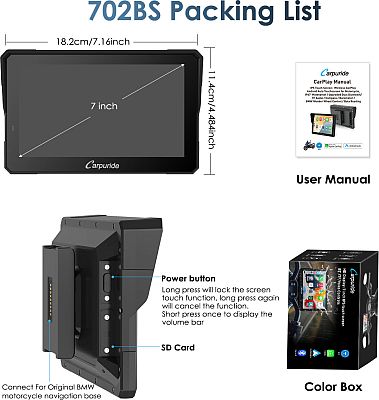

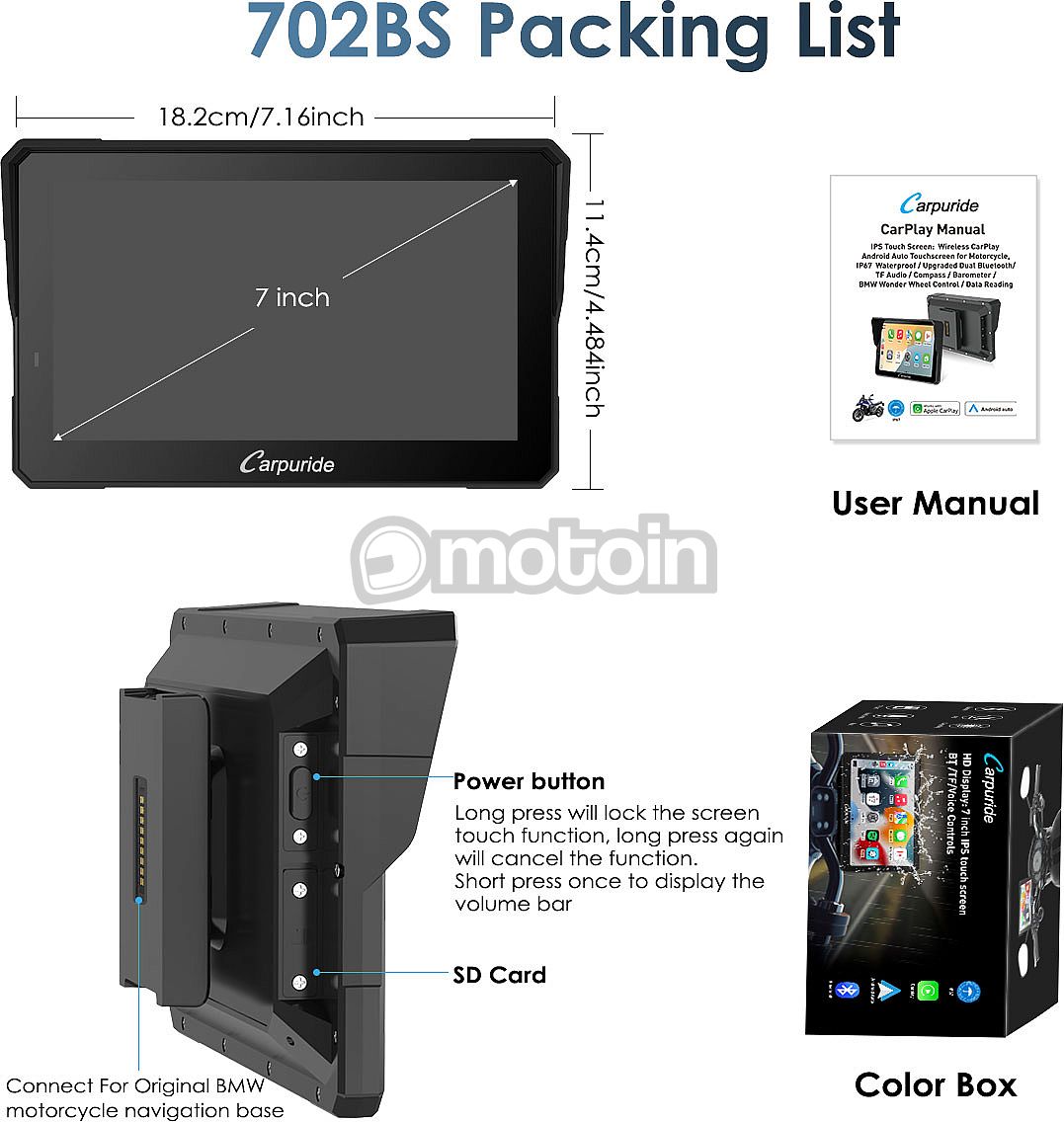

Scope of delivery

• 1x Carpuride W702BS main unit
• Installation hardware & user manual

Important compatibility notes

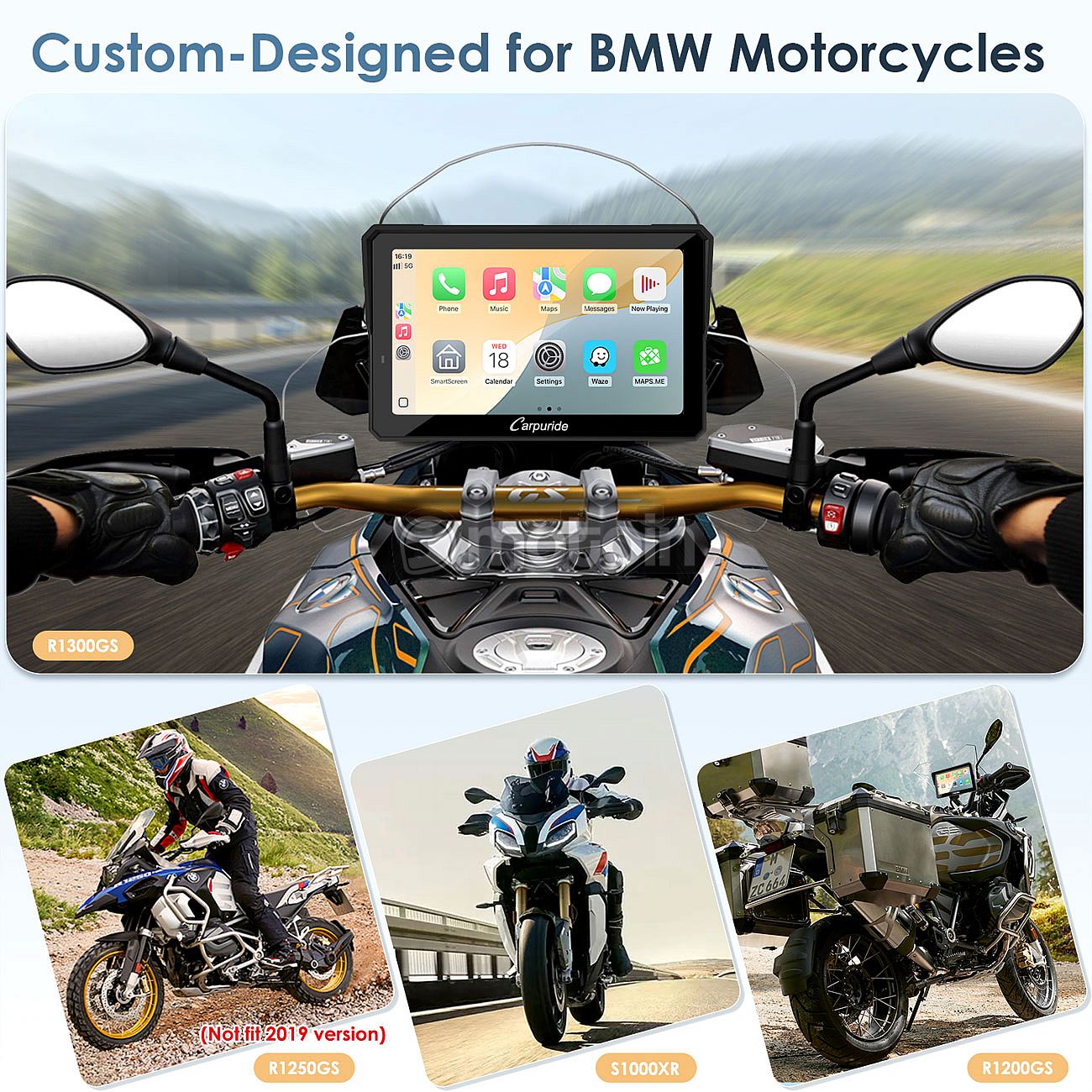

Compatible with select motorcycle models, including

• BMW R 1200 GS
• BMW R 1250 GS
• BMW R 1300 GS
• BMW S 1000 XR
• and more ...
• 2019 model of BMW R1250GS need the BMW OEM mount cradle with product number: 10396481, manufacturer number: 65908535826

Not compatible with

• R 1250 RT (2019 & 2021-onwards)
• K 1600 GTL

Mobile phone wireless compatibility

To ensure the best wireless experience (CarPlay/Android Auto), note that the following phones currently do not support wireless connection

• Samsung: Note 20, S20, Galaxy A20 (SM-A205g), M22
• Huawei: P40 Pro, P30, P30 Pro, P30 Lite (MAR-LX1A), Mate 20, Mate 20 Pro, P Smart 2019 (POT-LX1), Nova 5T, Mate 10 Lite；All phones running Huawei HarmonyOS are also not supported.
• Xiaomi: 12 Pro, 11 Lite, 9, Redmi 9
• OPPO: Reno 2, Reno 2 Z, A16S
• …and some other older models

If your phone appears above, consider using another compatible device to fully enjoy all features.

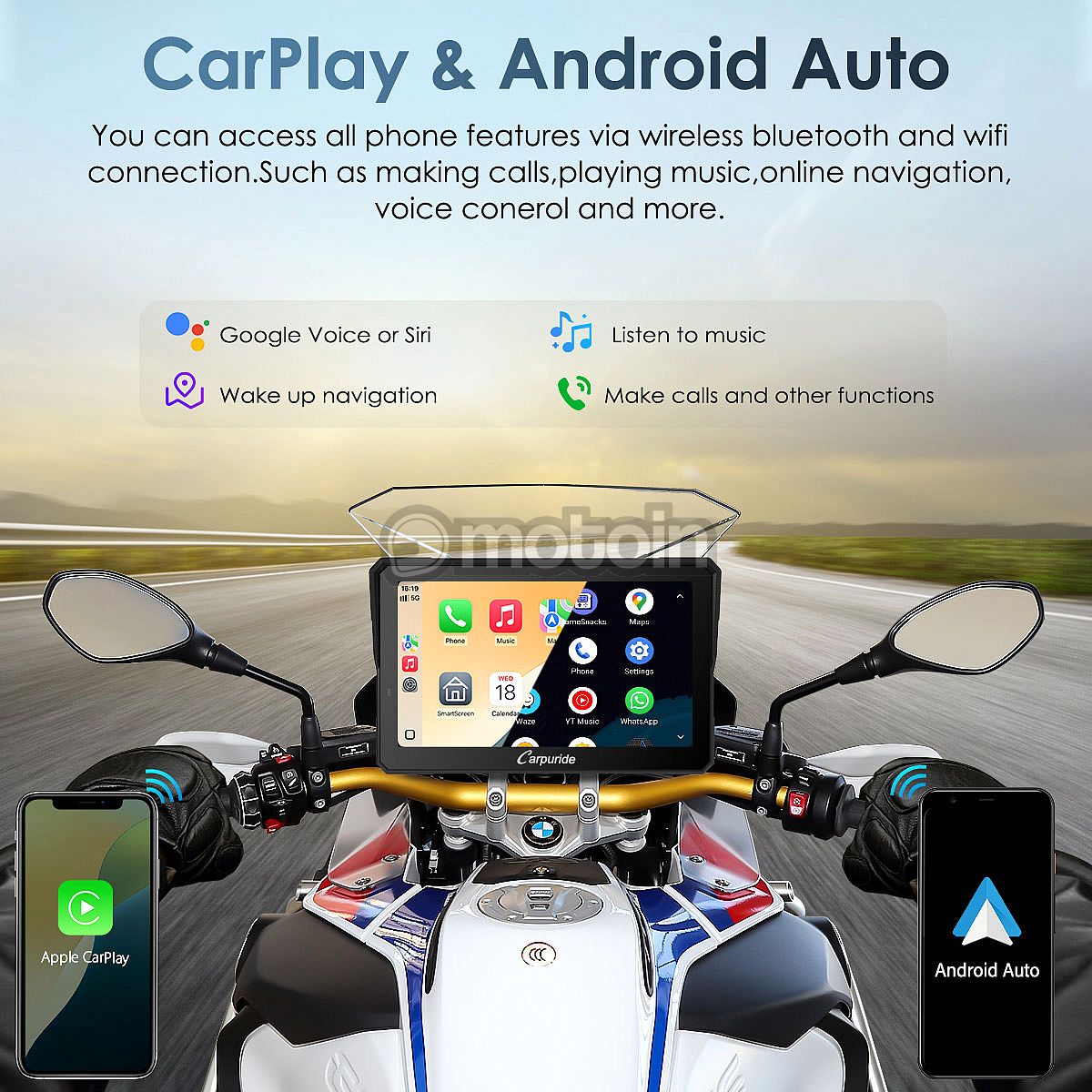

Wireless CarPlay and Android Auto

Seamlessly integrate Apple CarPlay and Android Auto through wireless mirroring, giving you access to calls, music playback, online navigation, and voice control (Google Voice/Siri) anytime, anywhere.

Only need to connect your phone via Bluetooth and WiFi during the first use. After that, it will automatically connect to your phone when you use it again.

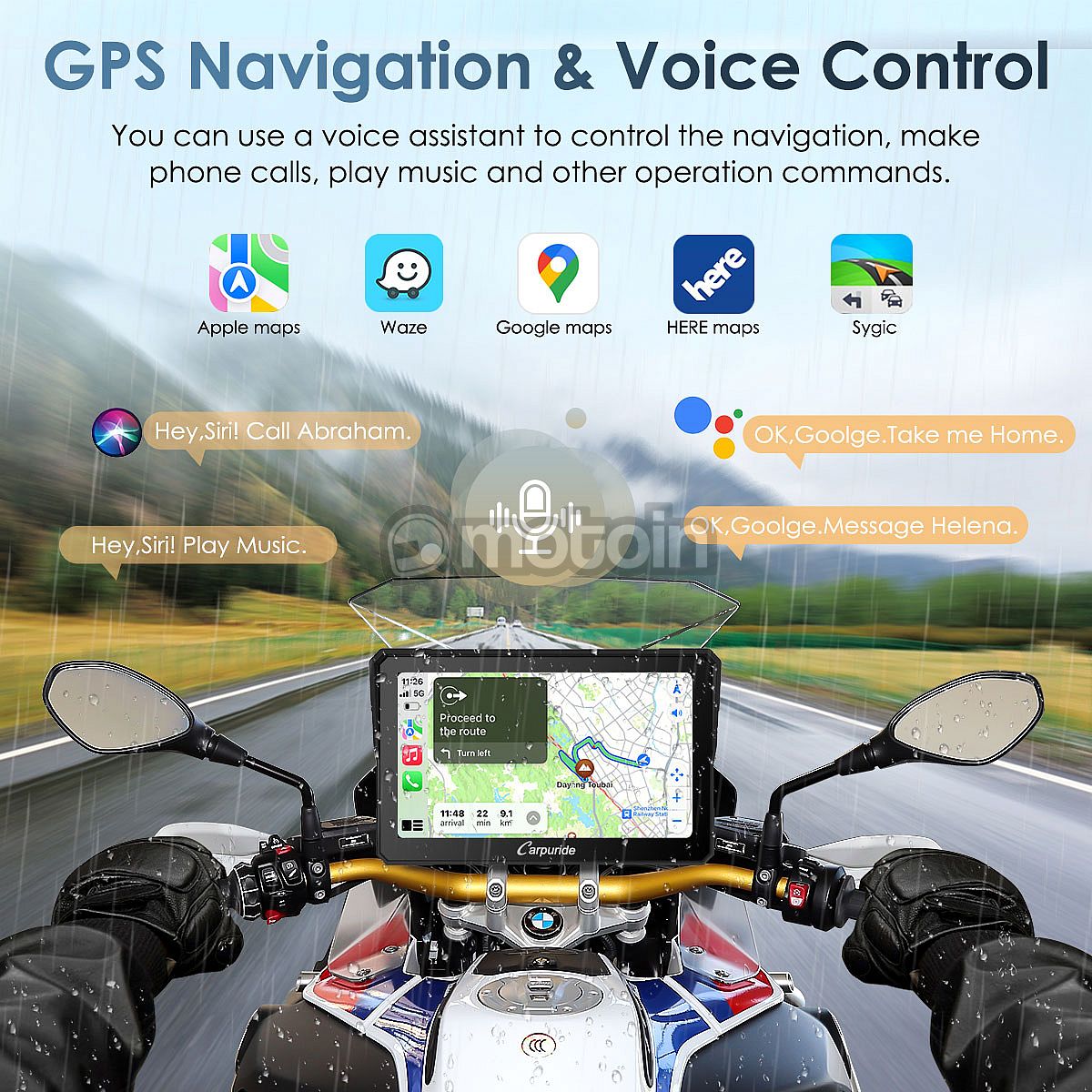

GPS Navigation and Voice Control for BMW Motorcycle

Easily sync with compatible map apps like Apple Maps, Waze, Google Maps, HERE Maps, and Sygic for free access to the latest maps and real-time traffic updates. Control your device via touchscreen or voice assistant for navigation, making calls, music playback, and more.

Voice commands like "Hey, Siri! Call Abraham" or "OK, Google, take me home" enhance convenience while riding, improving both safety and travel experience.

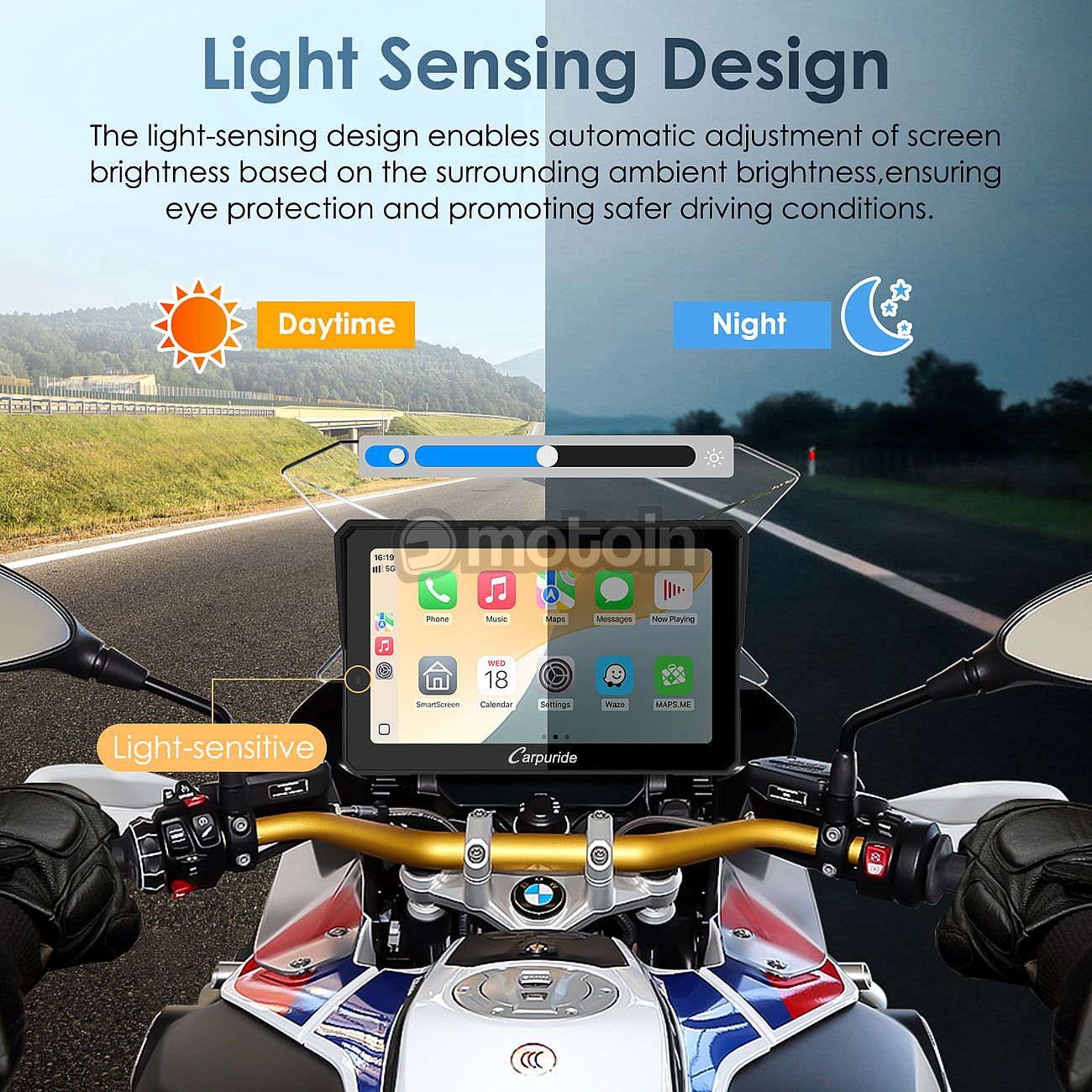

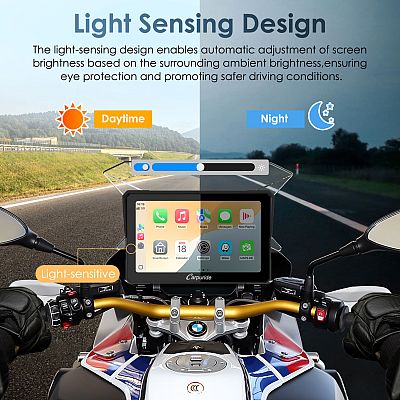

Automatic Light-sensing Design for Motorcycle Display

The light-sensing design enables automatic adjustment of screen brightness based on the surrounding ambient brightness, ensuring eye protection and promoting safer driving conditions.

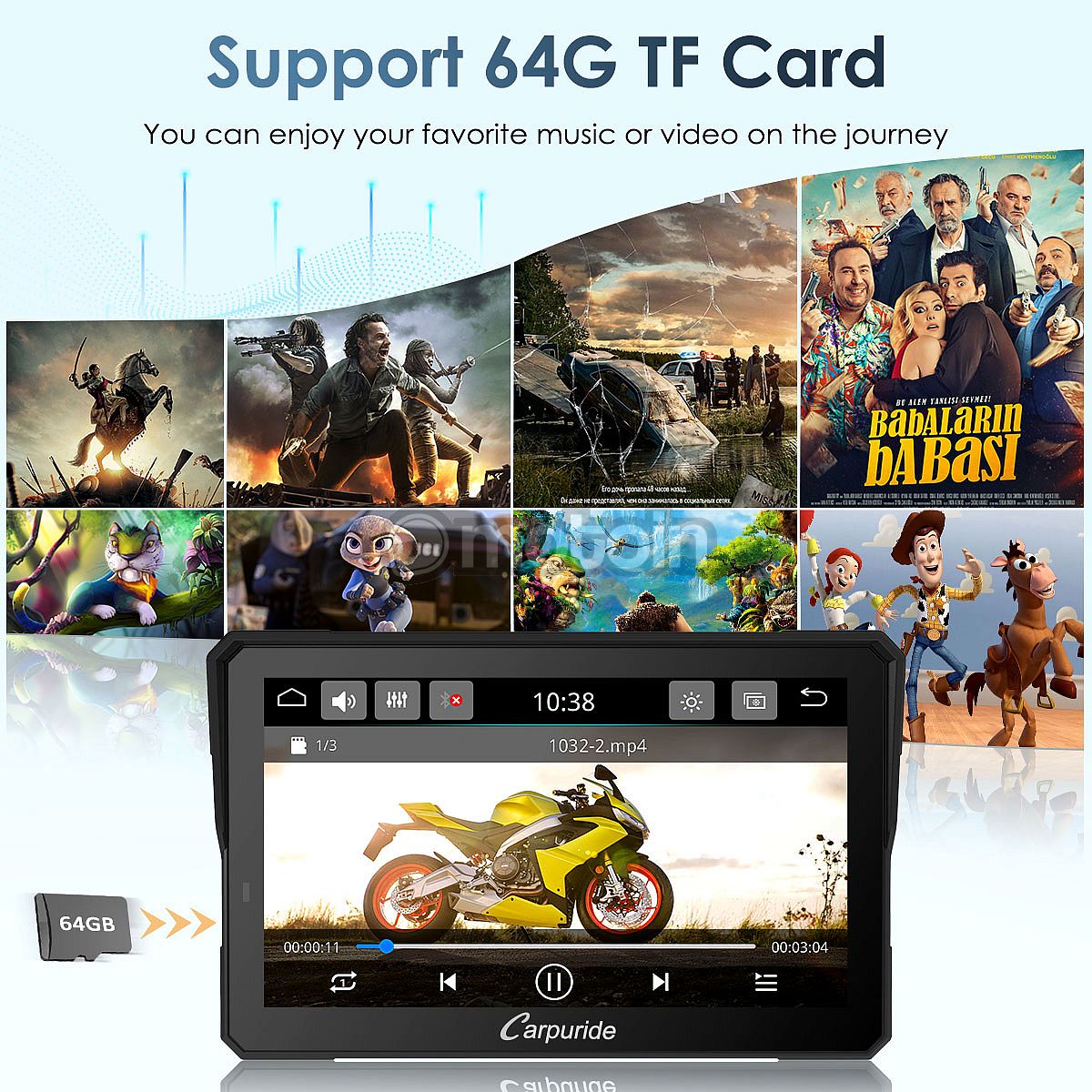

Supports 64GB TF Card (Expandable to 256GB)

Instantly switch to entertainment mode on the go—music, movies, and animations at your fingertips. Turn every ride into an exciting journey! You can expand up to 256GB if you want.

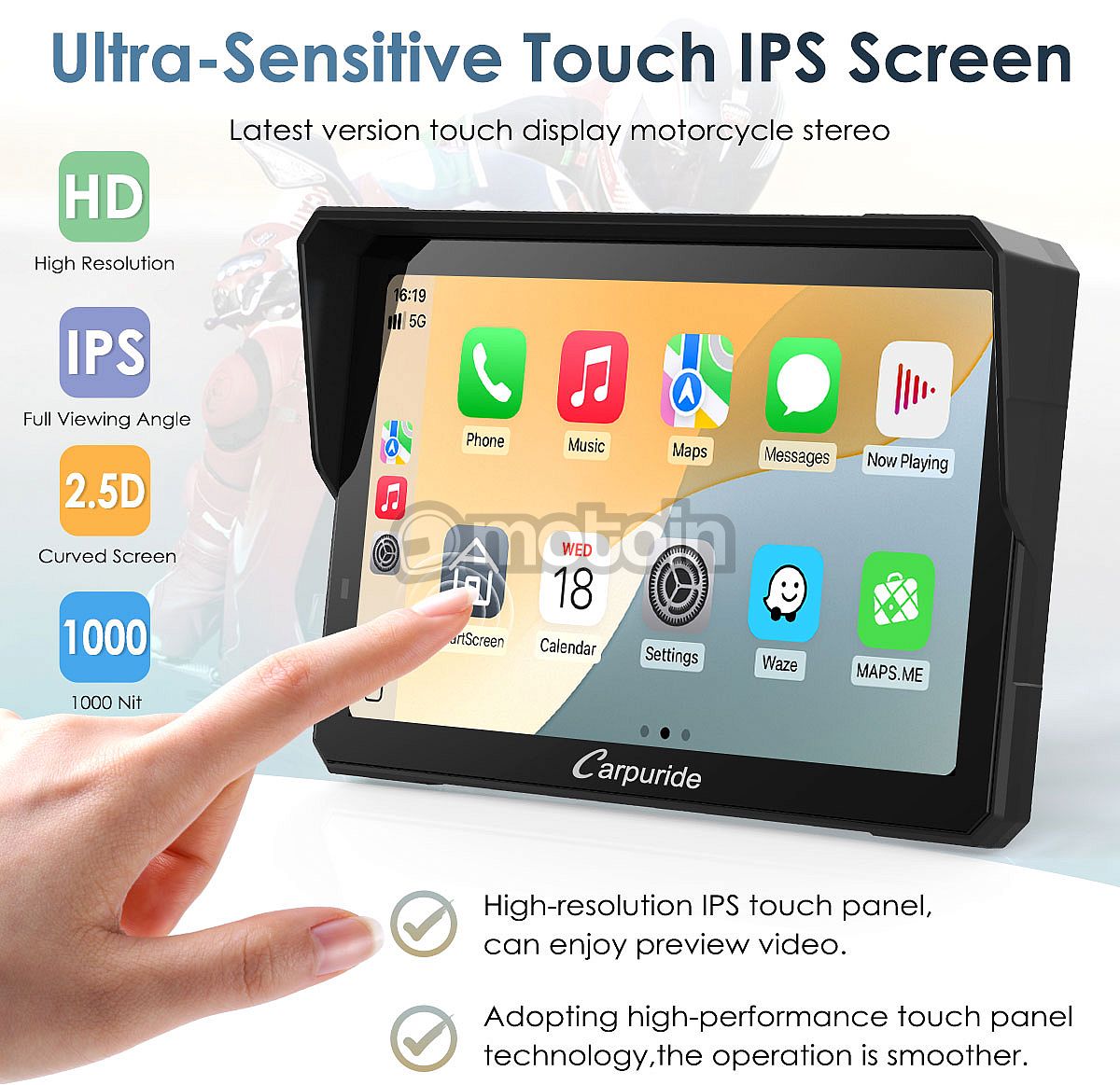

Ultra-Sensitive Touch IPS Screen

The IPS touchscreen provides sharp, clear visuals with full viewing angles. The 2.5D curved screen is smooth to the touch, with 1000 nits brightness for clear visibility even in direct sunlight. Enjoy smooth, responsive controls for an enhanced riding experience!

Versatile BMW Motorcycle Stereo for All Riding Conditions

With IP67 waterproof, high-temperature, and low-temperature resistance, this device is designed to withstand harsh conditions such as rainy rides, intense sunlight, and snowy weather. It helps prevent device damage and functionality issues in extreme environments, ensuring a reliable and stable experience during your rides, no matter the weather.

IP67 Waterproof Rating - Fully protected against:

• Heavy rain and water spray
• Dust and dirt
• Extreme temperatures (-20°C to 60°C)
• Vibrations and shocks

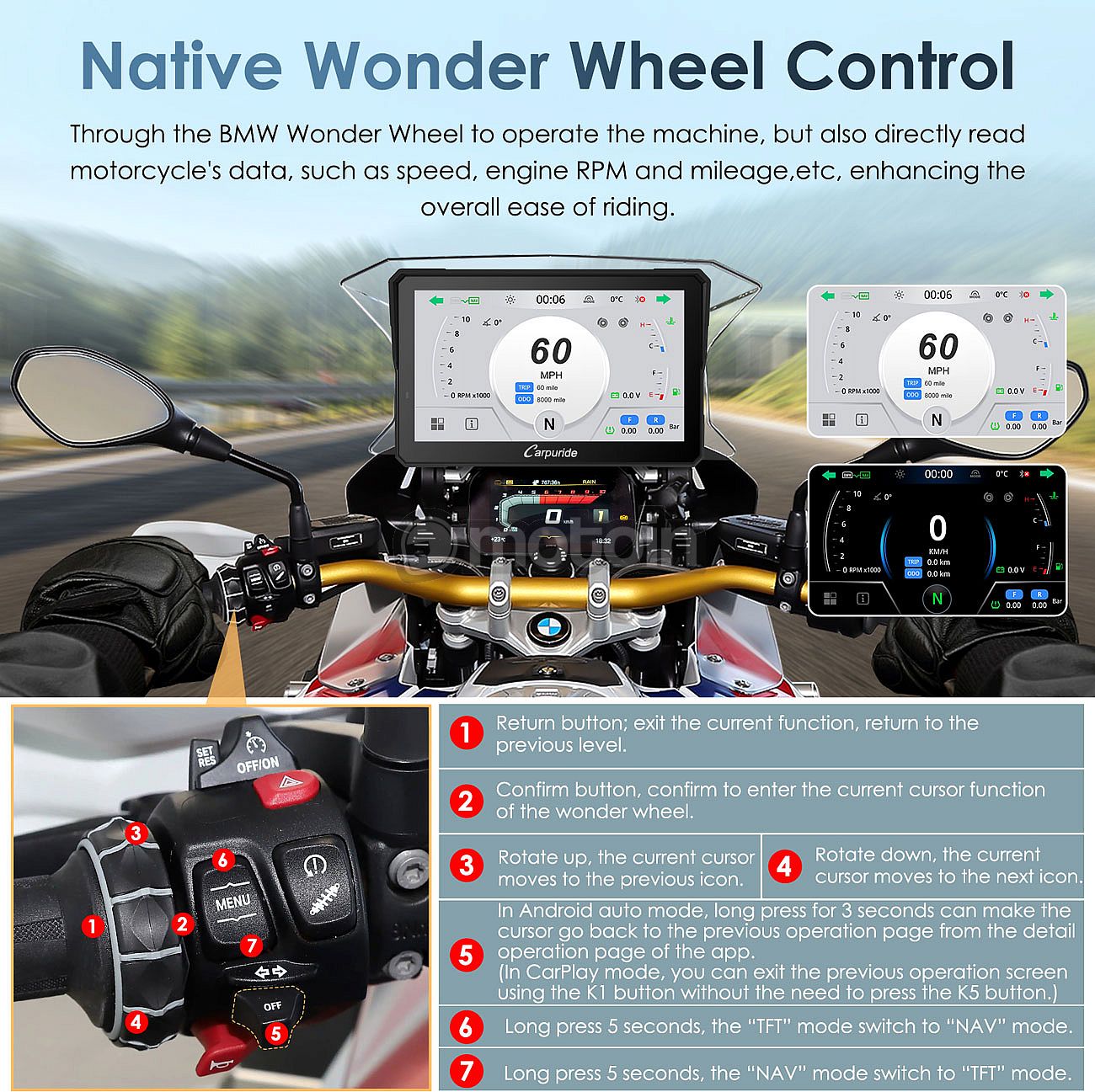

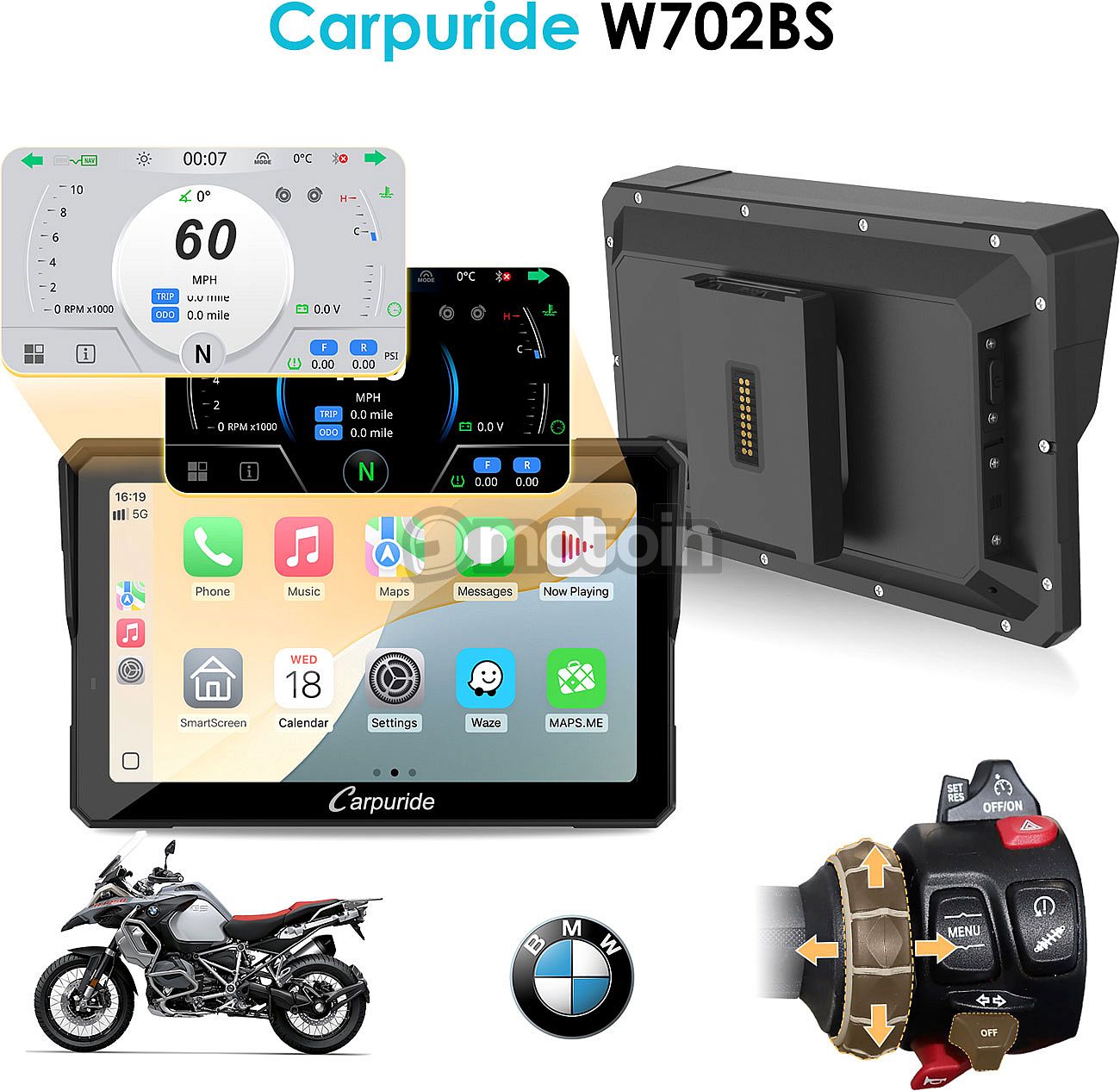

Wonder Wheel Control

Control the entire CarPlay/Android Auto interface in real time without taking your hands off the handlebar. Requires the original BMW navigation bracket.

Perfect compatibility with BMW's original multi-function controller. Control navigation, music, calls, and vehicle data like tire pressure, RPM, and mileage without touching the screen. True BMW OEM experience.

Enhanced Multi-Controller Compatibility

Manage your motorcycle's stereo screen using your BMW's existing controls. Access core data in real-time, such as speed, engine RPM, and mileage, enhancing the convenience of your ride!

How OEM Controller Integration Works

• Rotate: Scroll through menus and switch music tracks
• Press: Confirm selections and enter functions
• Long Press: Switch between NAV and TFT modes
• View Data: See speed, RPM, mileage, tire pressure in real-time

Motorcycle Data Display

Shows real-time bike data such as engine RPM, mileage, and TPMS,etc.

Note: The TPMS display function requires a pre-installed TPMS system on your motorcycle. Without this system, the feature will not work.

Plug-and-Play Installation

Enjoy instant, wire-free installation with no complicated setup, as long as your BMW motorcycle has the original navigation bracket and is compatible with the product.

TPMS Display

Monitor tire pressure in real time directly on screen for safer riding. Requires a pre-installed tire pressure monitoring system(TPMS).

SOS Emergency Mode

In the event of a collision, the system initiates a 10-second countdown. If not manually canceled within this time, it will automatically dial your emergency contact for immediate assistance.

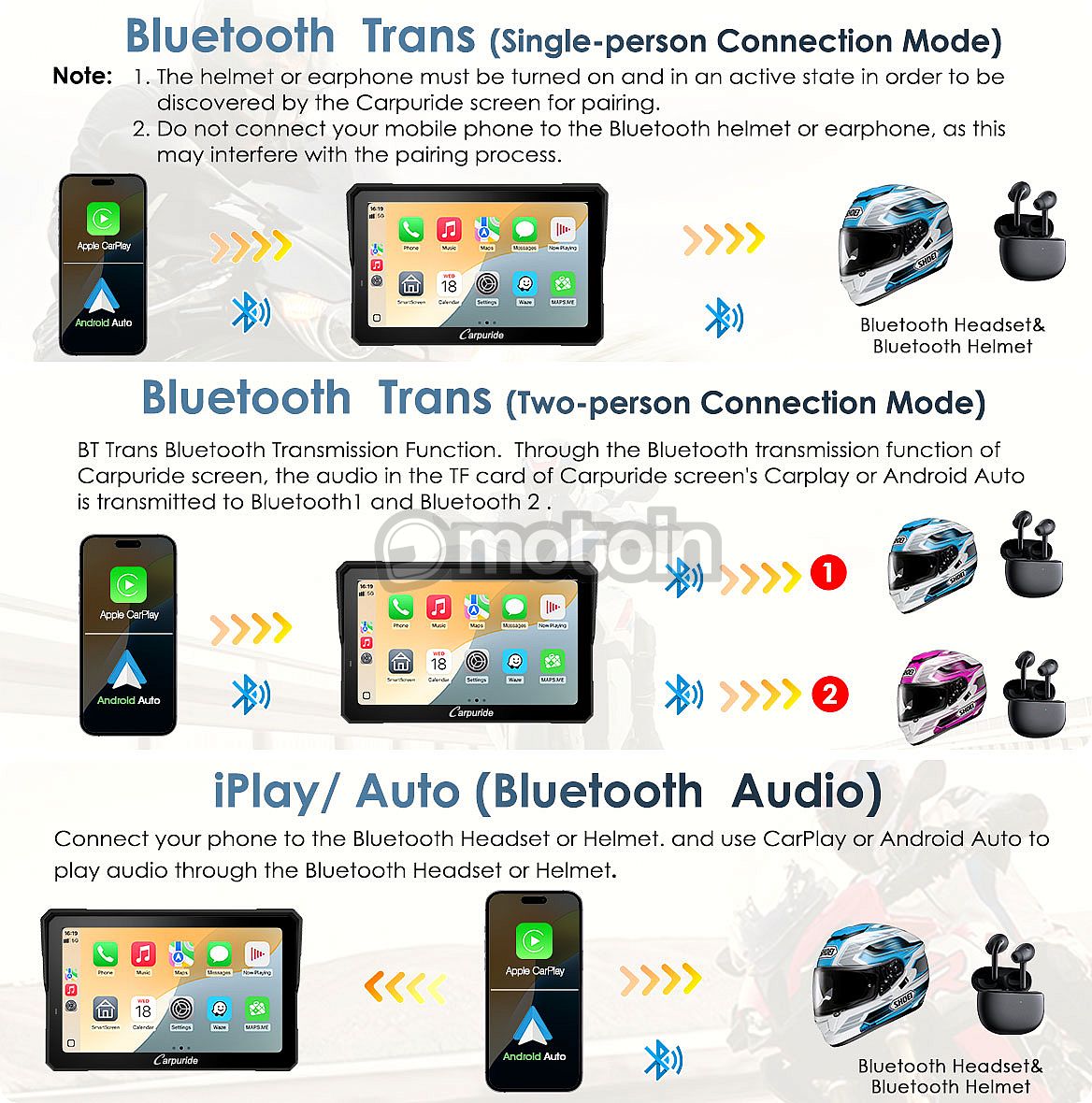

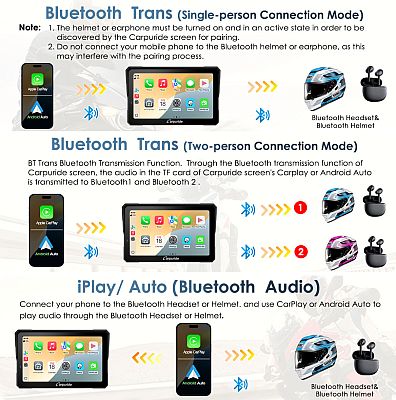

Dual Bluetooth Audio System

The W702BS/W502BS features advanced dual Bluetooth technology. Choose the mode that best fits your riding style.

Bluetooth Trans (Single-person Mode)

Best for: Solo riders who want wireless audio to their helmet.

• Ensure your helmet or earphones are powered on and in pairing mode to connect with the Carpuride screen
• Do not connect your phone to the Bluetooth device, as it may interfere with pairing

Bluetooth Trans (Two-person Mode)

Best for: Riding with a passenger or sharing audio.

• The Carpuride screen's Bluetooth transmits audio to Bluetooth 1 and Bluetooth 2
• While using CarPlay/Android Auto, music and navigation can be transmitted to both Bluetooth devices. However, voice assistant and phone calls can only be transmitted to Bluetooth 1
• It's recommended for the rider to connect to Bluetooth 1 for full functionality

iPlay/Auto (Bluetooth Audio)

Best for: Traditional phone-to-helmet connection

• Connect your phone to a Bluetooth headset or helmet and use CarPlay/Android Auto to play audio

Music Sharing & Intercom Function

• BT1 (Primary): Full functionality - calls, music, voice assistant, and intercom
• BT2 (Secondary): Music sharing and intercom only (no calls or voice assistant)
• Intercom: Click the intercom icon to enable rider-passenger communication. Click again to disable

Note: Intercom mode and BT trans mode cannot be used simultaneously.

Compass & Barometer & TPMS System

• Compass: Built-in compass for navigation. Calibrate by drawing a horizontal figure-8 in the air (3-5 times) if readings are inaccurate
• Barometer: Measures atmospheric pressure to display your current altitude for safer riding
• TPMS: Displays tire pressure data from your motorcycle's existing TPMS system
