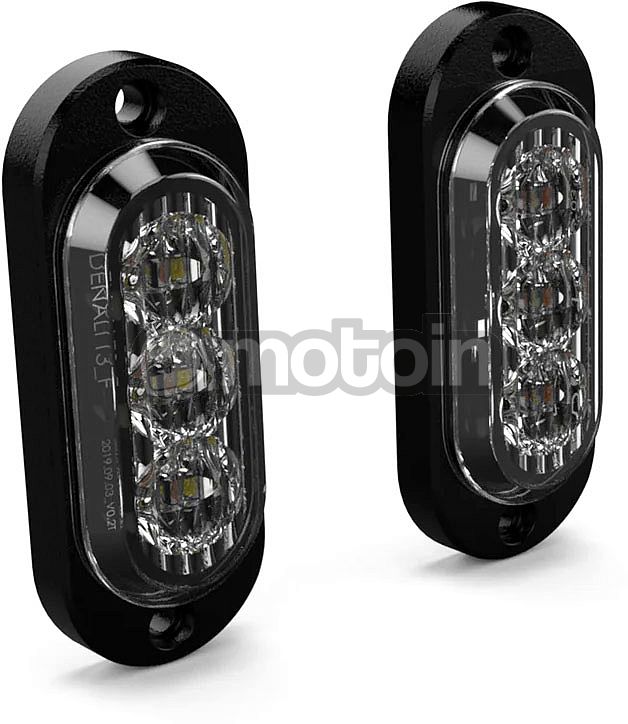

Denali T3 Modular Switchback Pods, rear lights

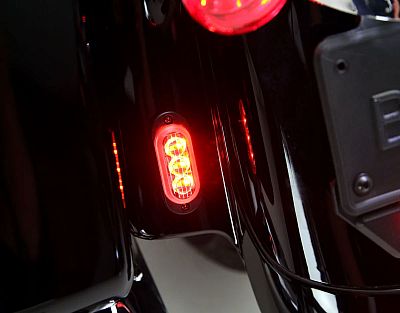

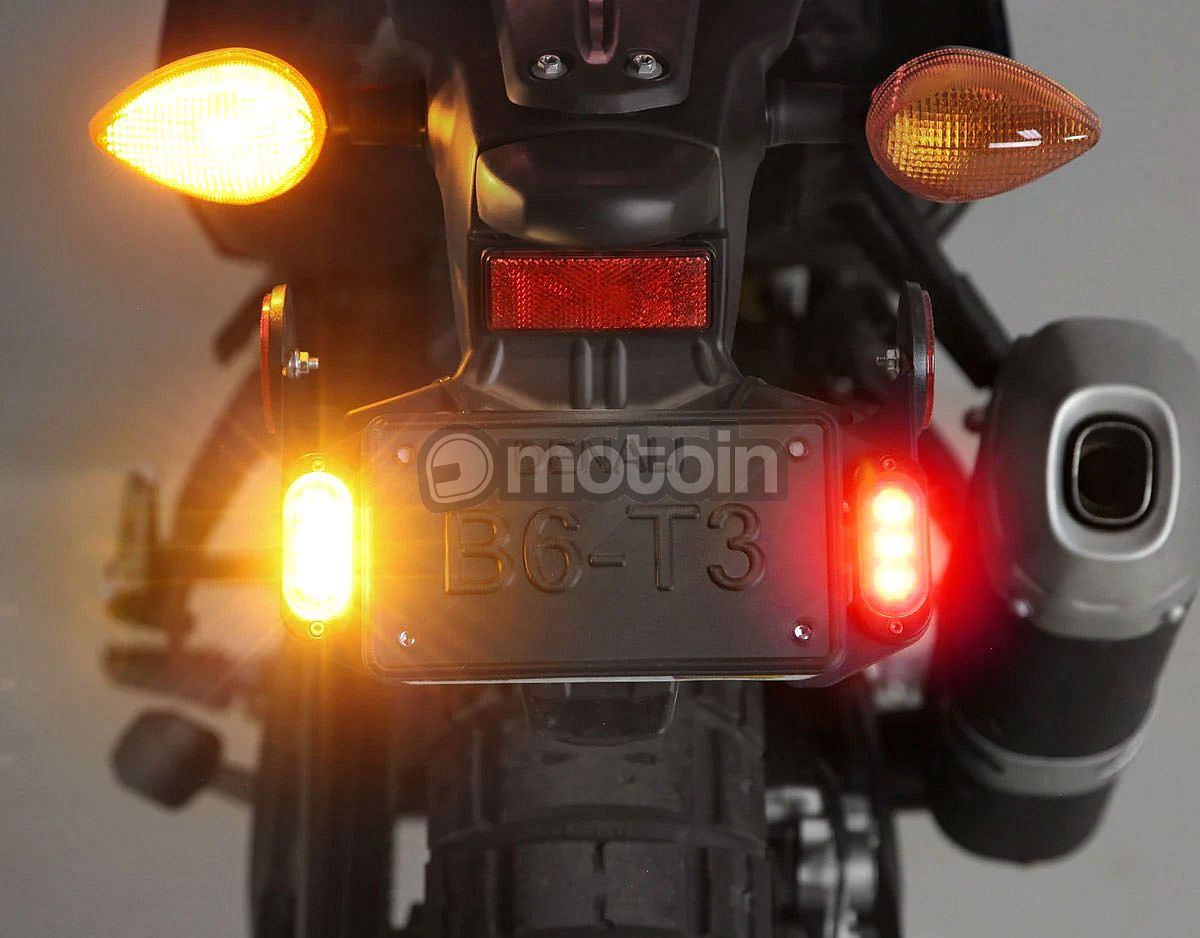

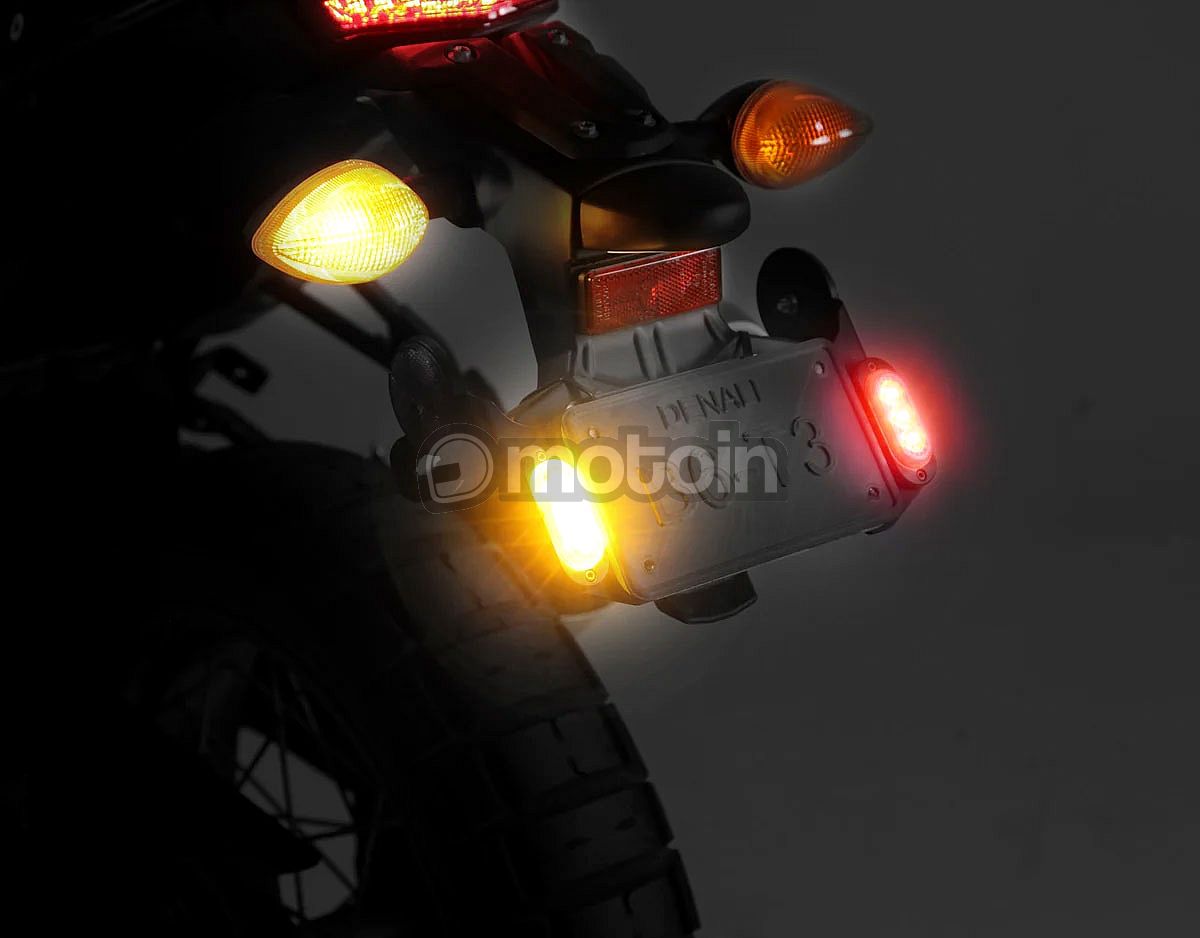

The T3 is a unique and innovative approach to the common turn signal blending white visibility lighting, red brake lighting, and amber turn signal lighting into one modular system. The front T3 turn signal pods feature super bright white running lights that switch to amber when your turn signal is activated, while the rear T3 signal pods feature super bright red LEDs for run and brake functionality that also switch to amber when your turn signal is activated. Unlike other switchback turn signals, the T3s feature two separate rows of high-power single-color LEDs as opposed to weaker bi-color LEDs. The result is a shockingly bright light pod that rivals the intensity of auxiliary driving lights.

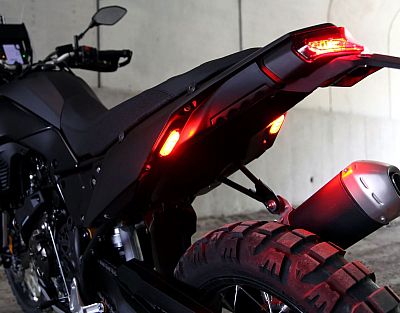

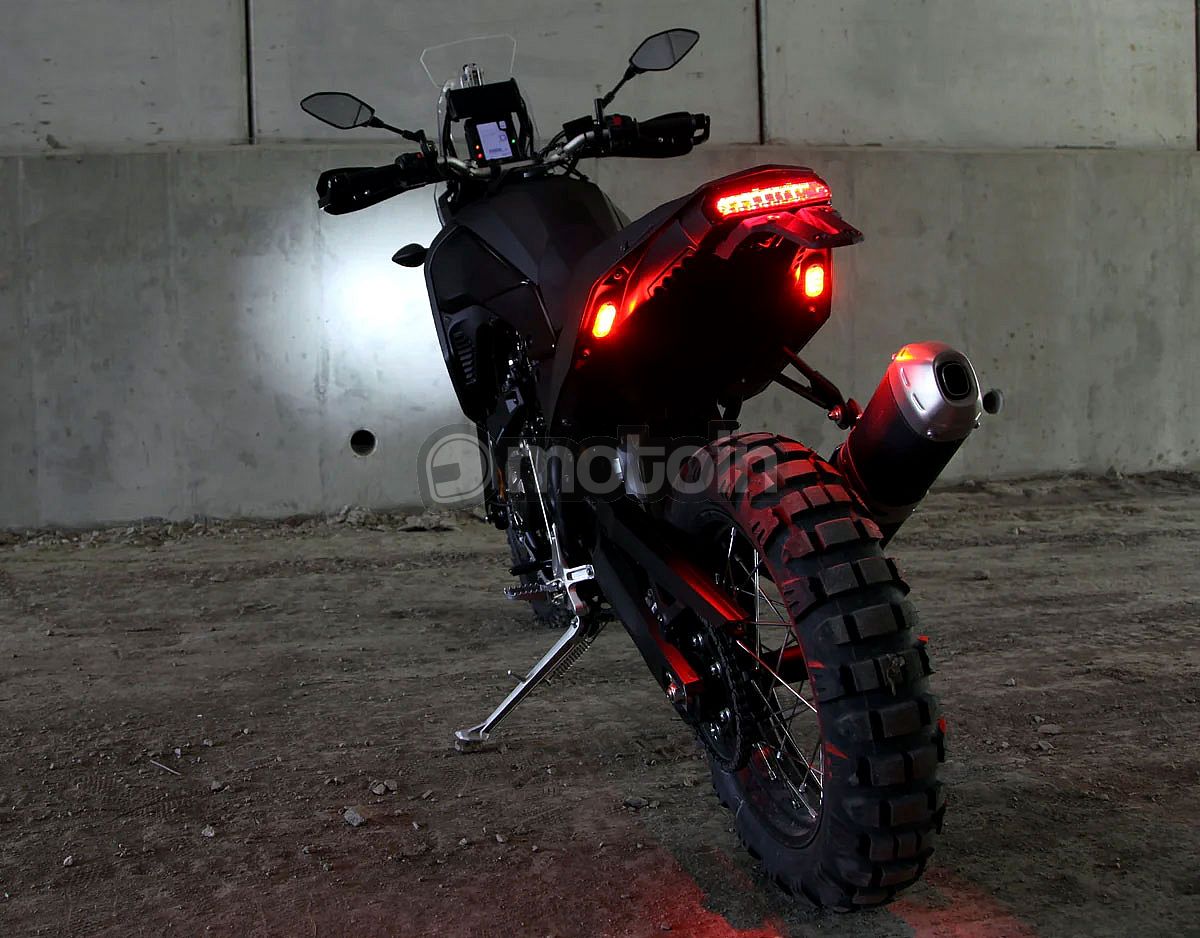

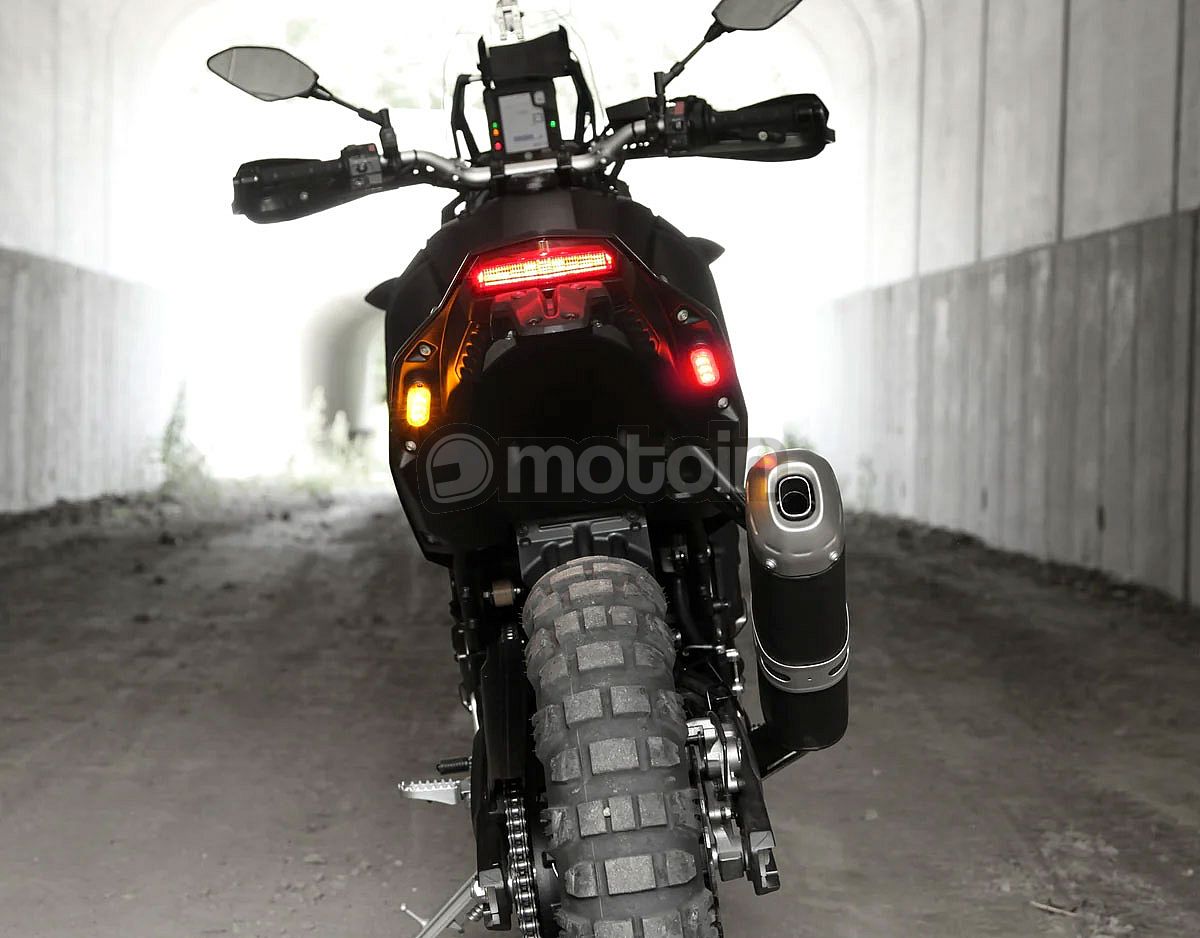

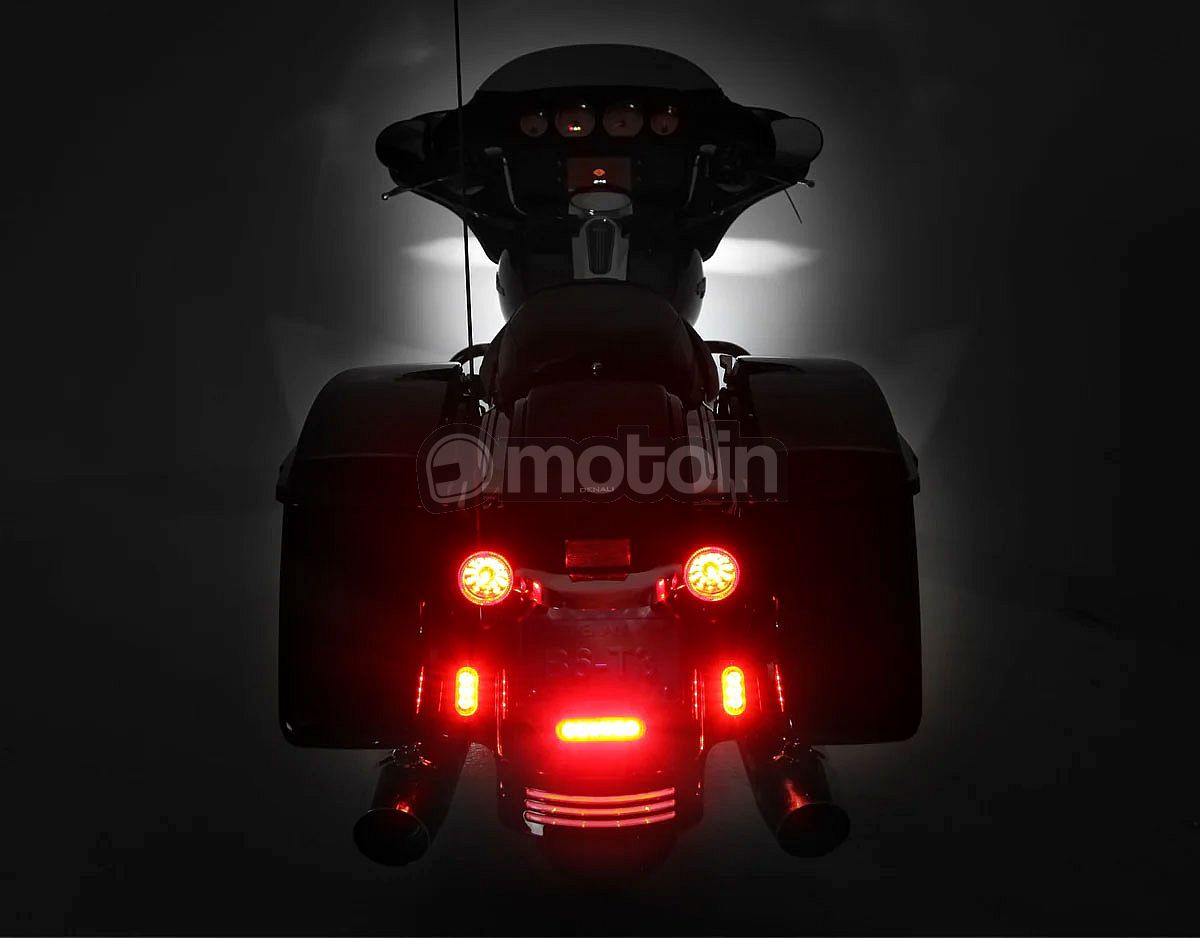

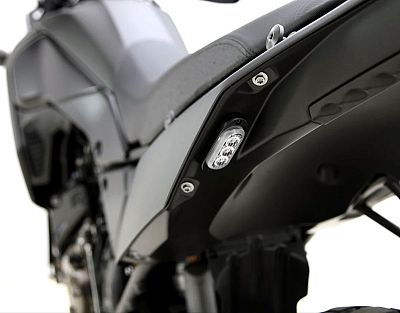

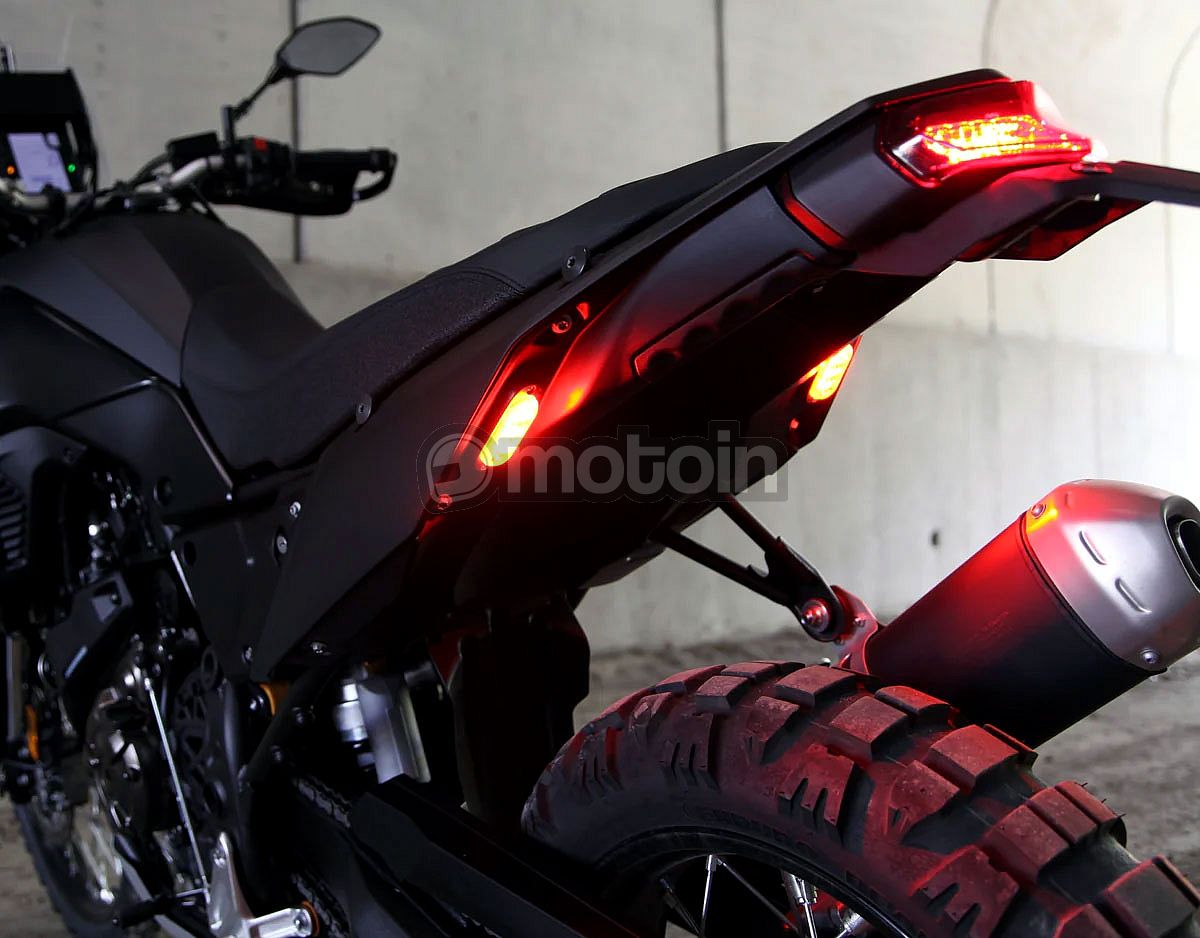

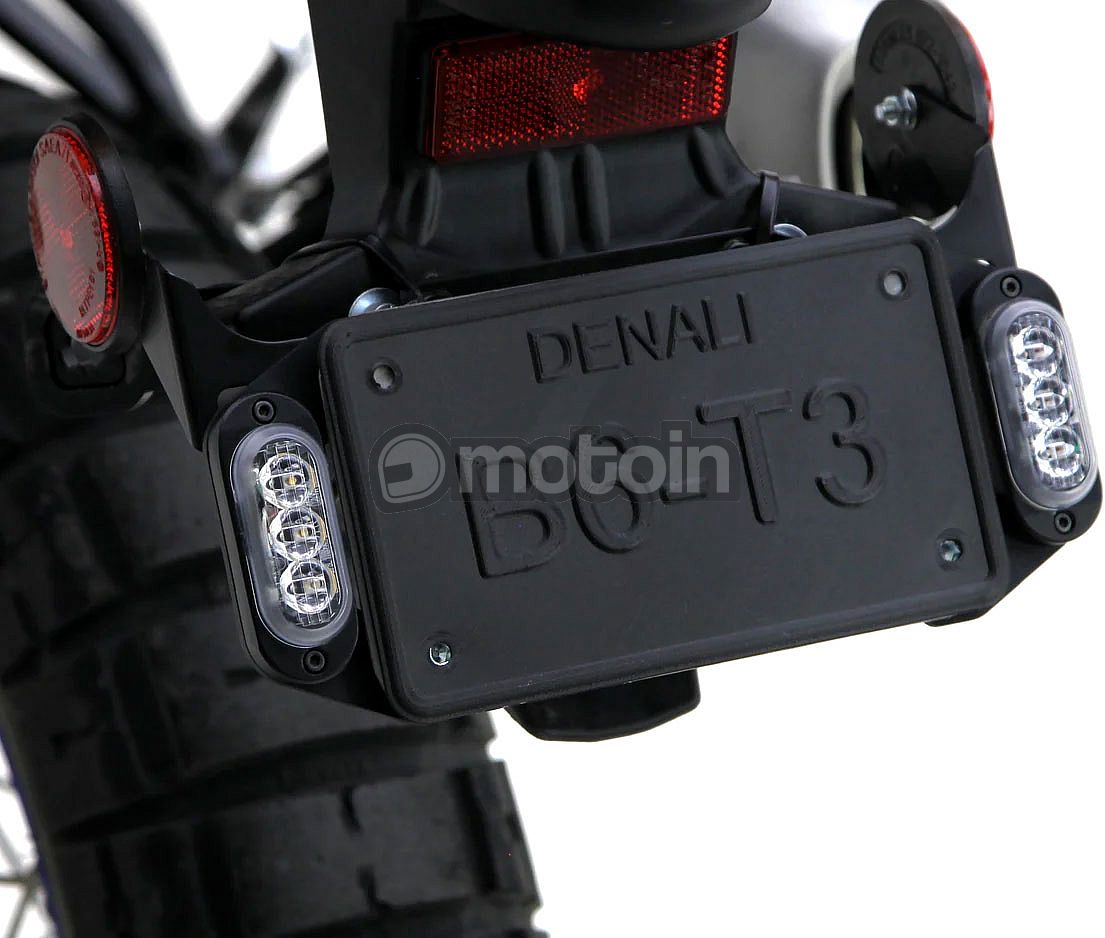

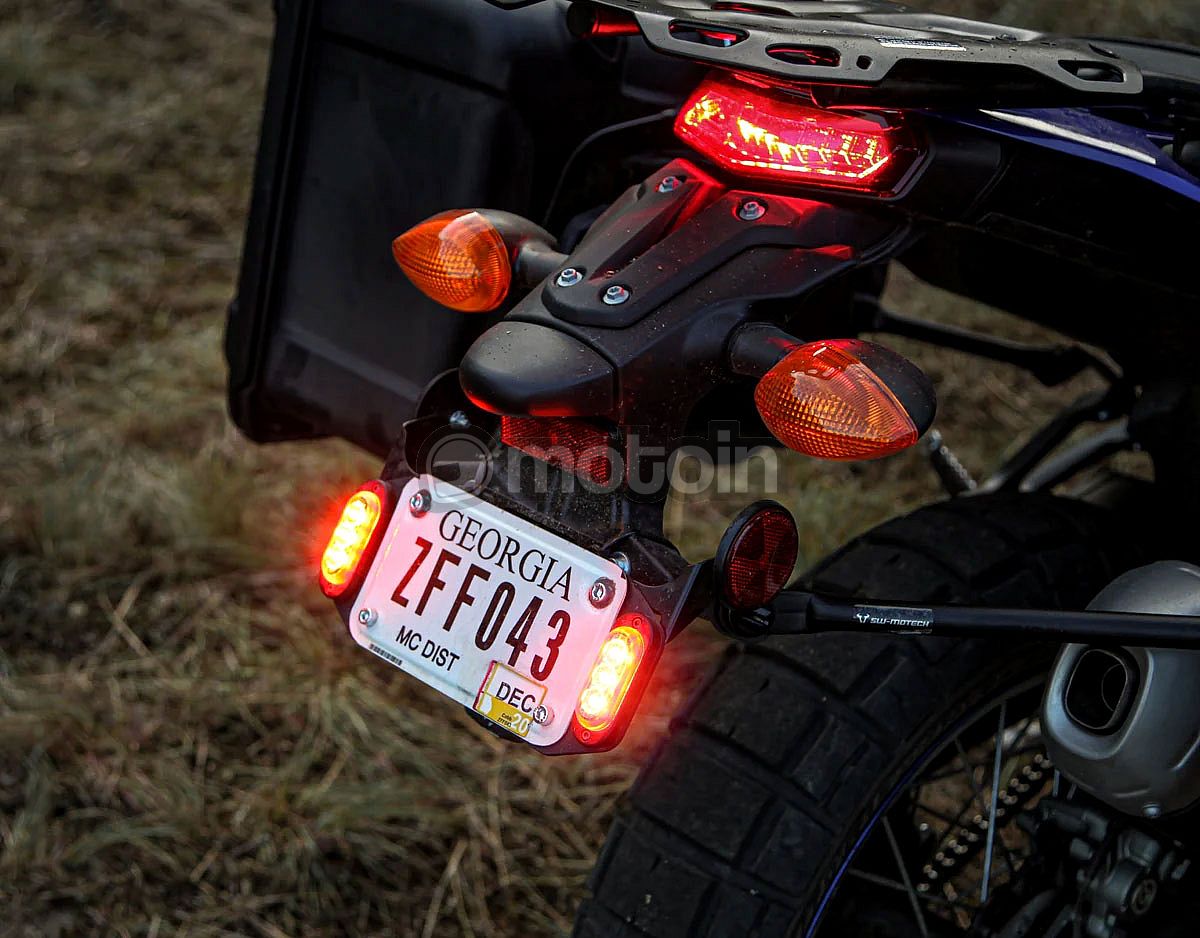

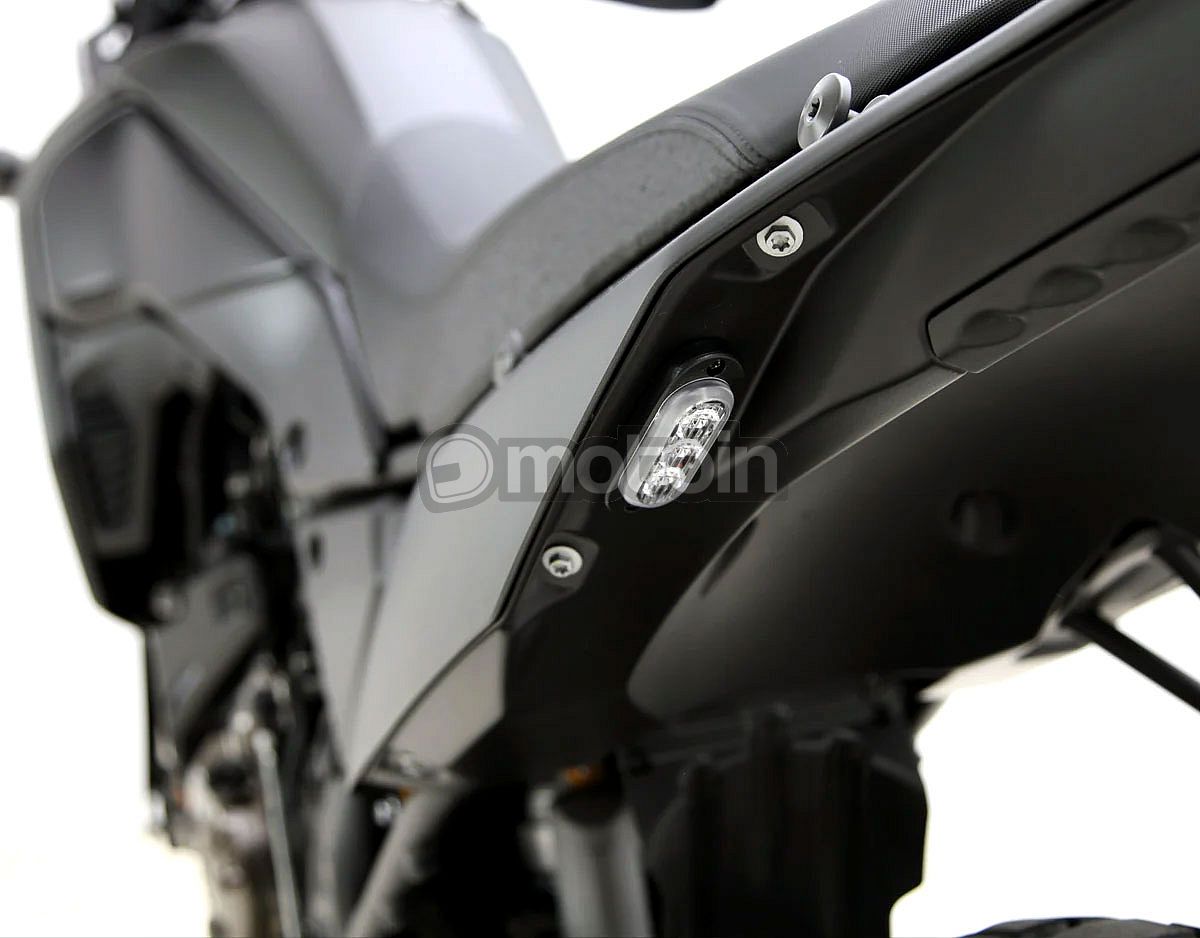

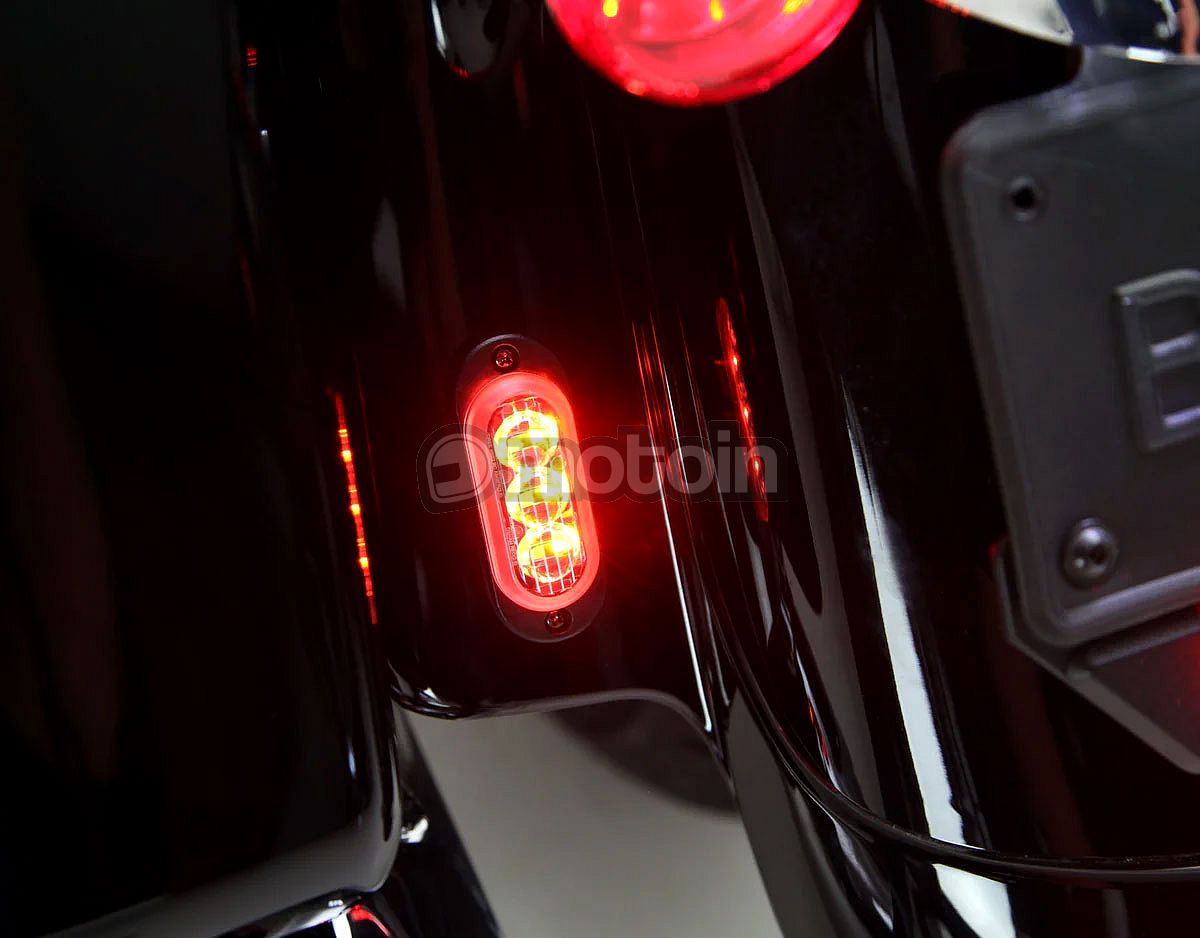

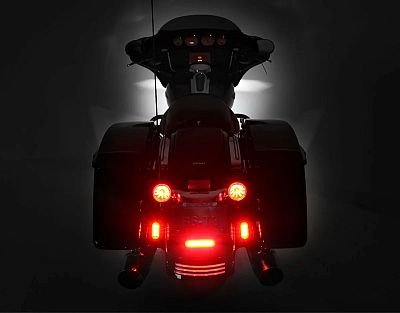

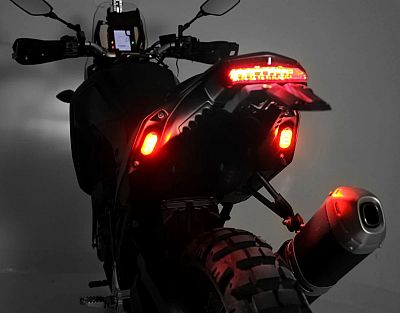

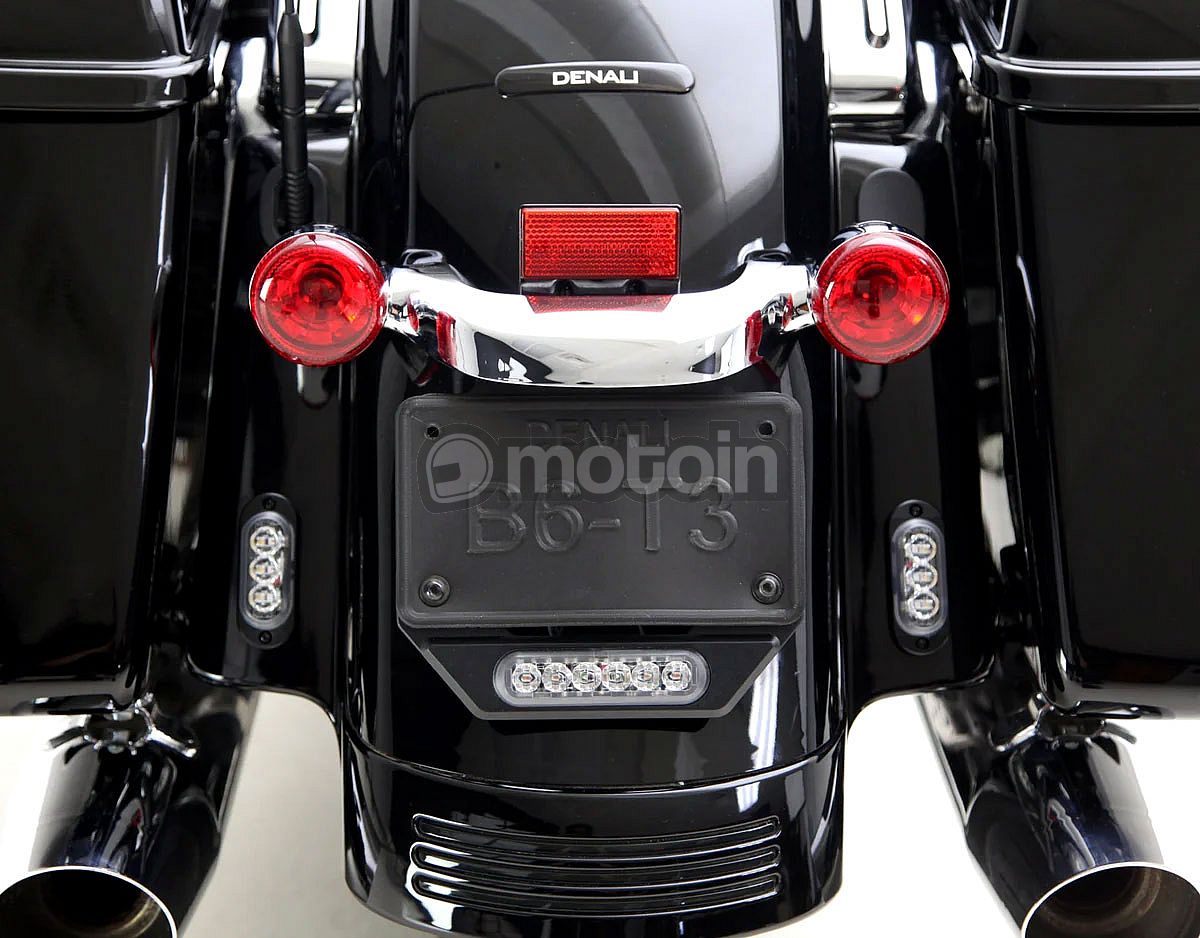

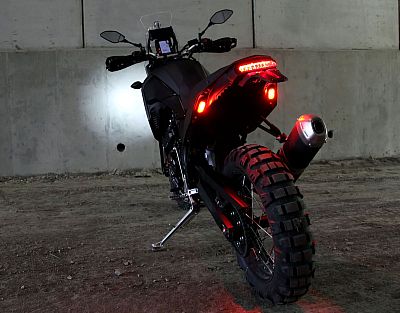

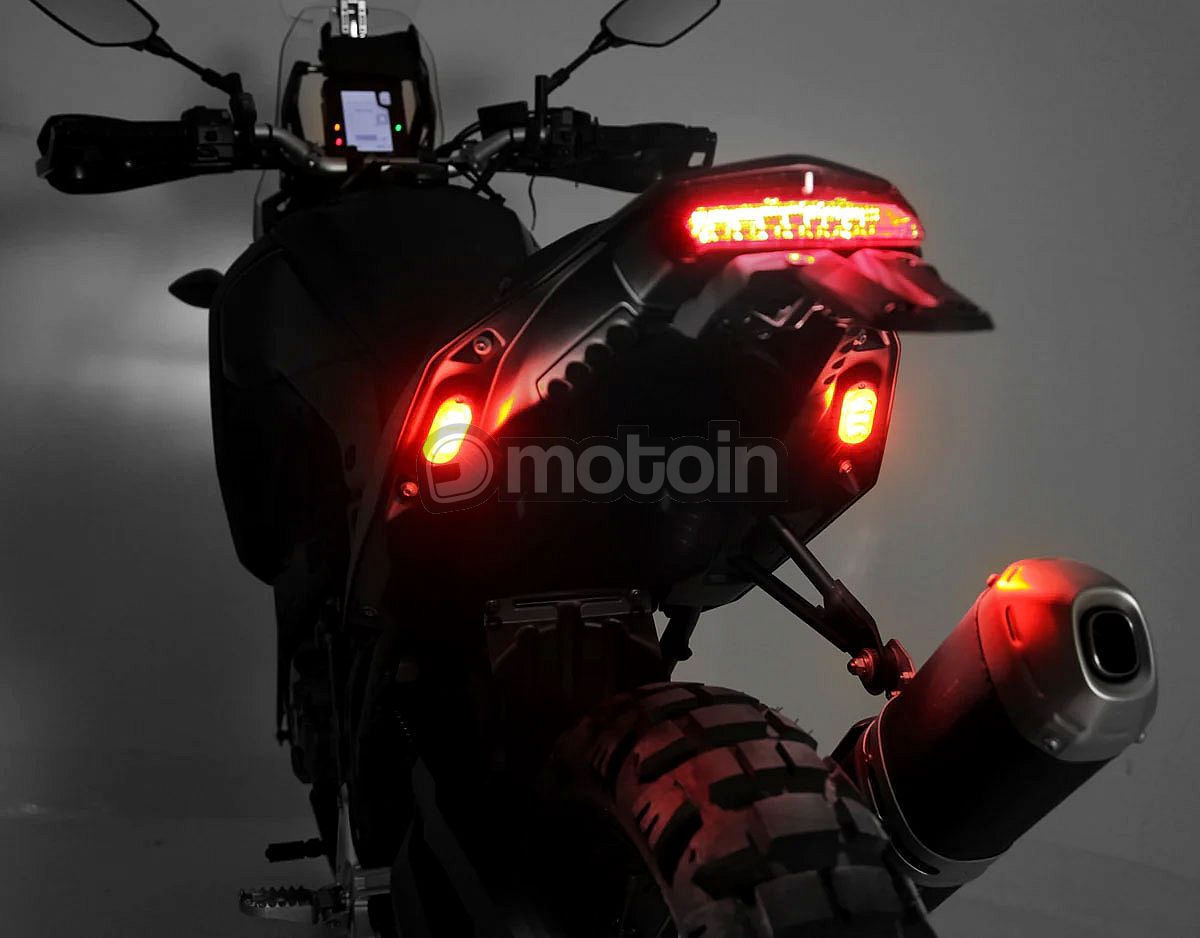

While the T3s are available in a traditional turn signal housing, this low-profile modular signal pod is designed to be mounted to a variety of other locations on the front and rear of your vehicle. Dedicated front mounting kits allow T3s to be mounted to handguards, front fenders, and body panels, while rear mounting kits allow them to be mounted to cases, license plates, and rear fenders. This kit includes 4 self-tapping screws, so no additional mounting kit is necessary for flush-mounting applications!

The modular low-profile housing coupled with high power LEDs make the T3 the brightest and most versatile switchback turn signal on the market.

T3 Signal Pods are Plug & Play compatible with CANsmart Controllers with the additional purchase of the CANsmart Wiring Harness for T3 Switchback Signals.

Features

• Switchback Functionality: Red Run/Brake & Amber Turn Signal
• Run/Brake Circuit: 25% Run, 100% Brake
• 180-degree viewing angle
• Six high power LEDs (per pod)
• Low-profile design

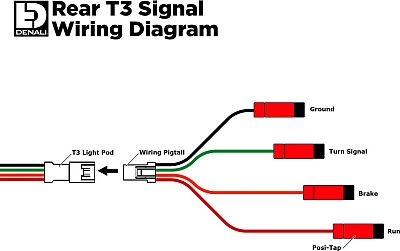

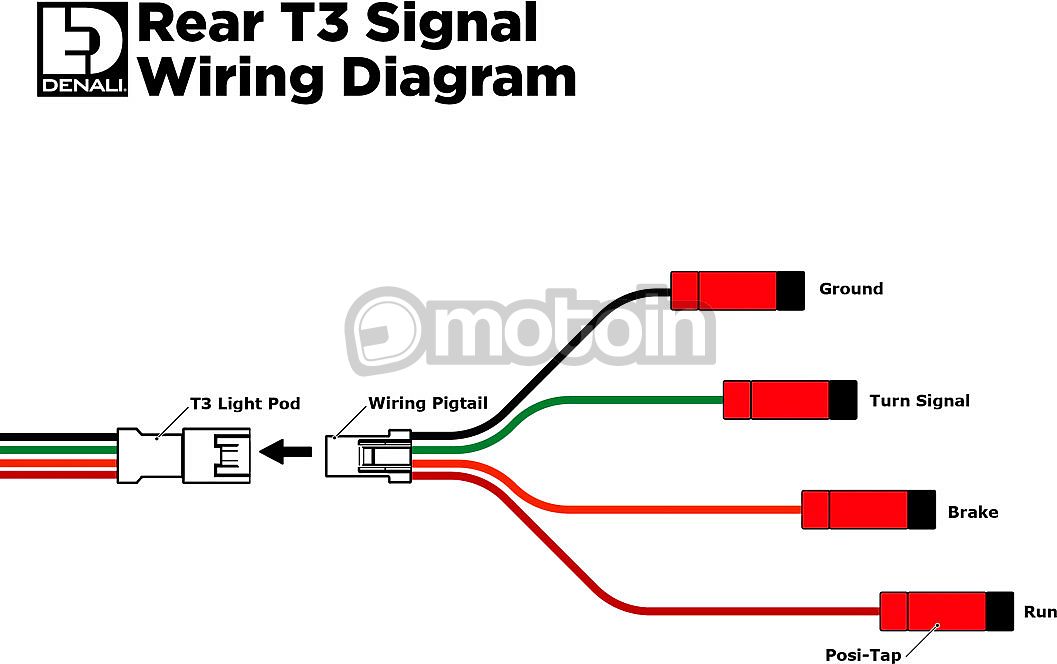

• Easy connection to vehicle brake and turn circuit
• E-Mark approved run, brake and turn signal

Specifications

• Total Power Draw: 0.06A Run, 0.25A Brake, 0.55A Turn Signal
• Input Voltage: 12 V DC
• Size: 2.9" x 1.13" x 0.5" / 7.37 x 2.87 x 1.27 cm
• Wire Length: 30" / 75 cm
• Weight: 0.08 lbs
• Raw Lumens: 870
• Waterproof: IP67

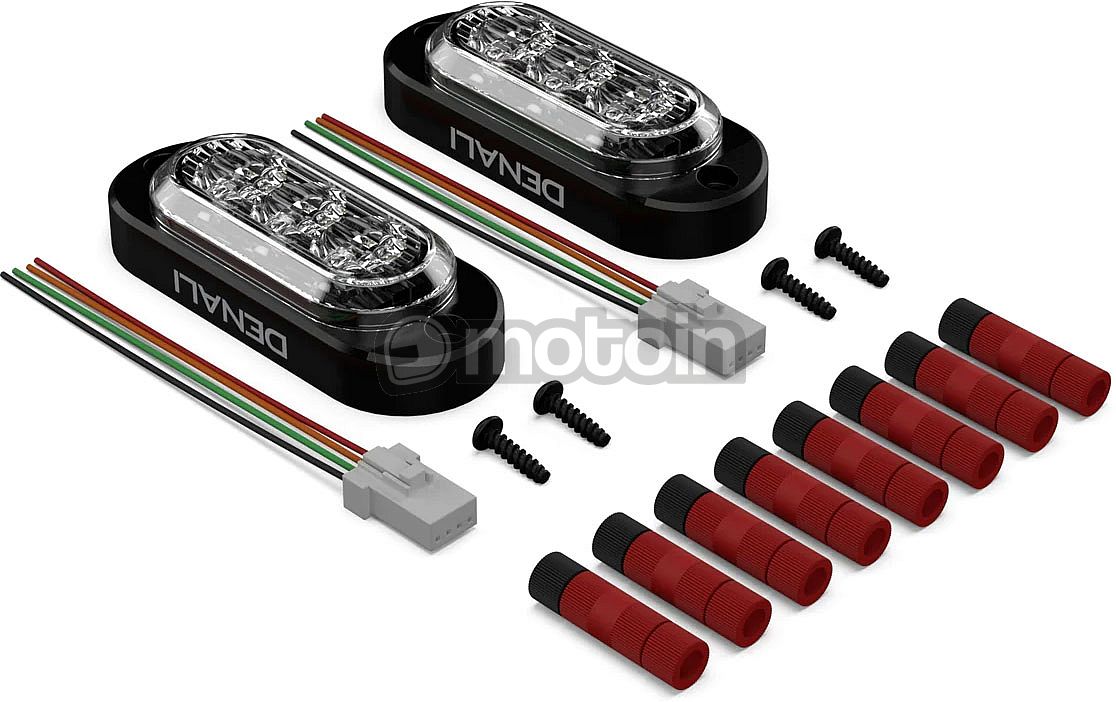

Scope of delivery

• (2x) Rear Signal Pods
• (2x) Wiring pigtails with waterproof connectors
• (4x) Mounting screws
• (8x) Posi-Taps
• Illustrated installation instructions

Important Note

DENALI T3 Rear Pods are NOT currently compatible with BMW R1250GS/A or R1300GS/A bikes unless used with the DENALI CANsmart. Please note that when powering rear T3s through a CANsmart the red running light will remain illuminated between the amber turn signal flashing. This is an unavoidable result when powering T3s solely from a CANsmart. If you'd prefer that the running light shuts off when the amber signal is active, simply connect the red running light wires from the T3 pods directly to a switched power source on your vehicle (and set the CANsmart brake light circuit to brake only).
