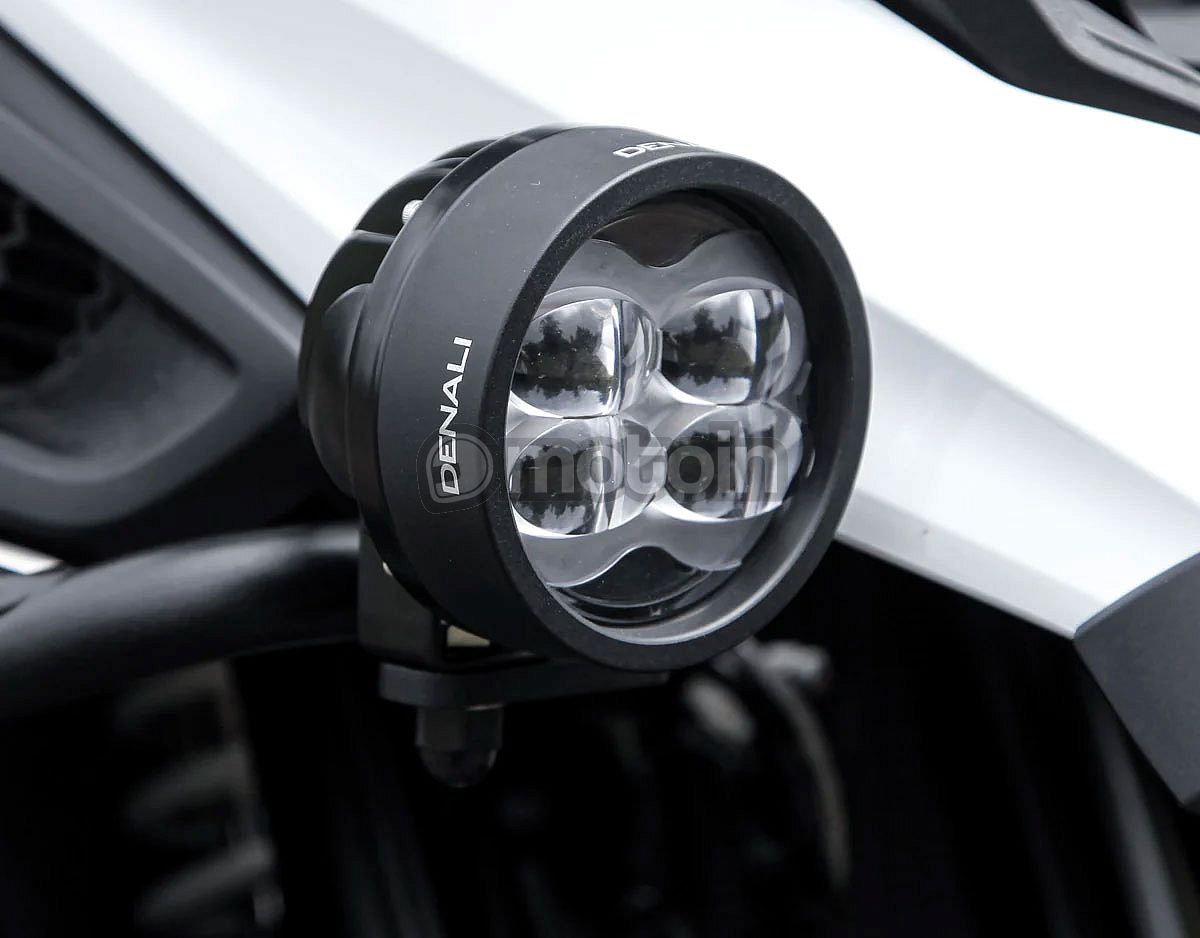

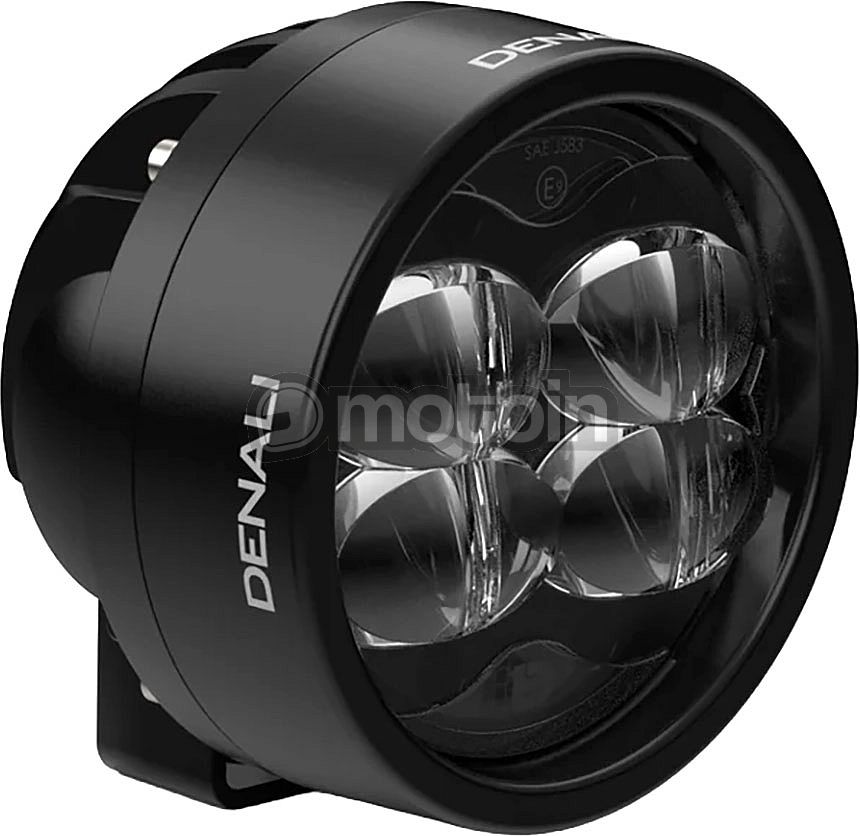

Denali D3 LED Fog Light Pod, luz auxiliar

DENALI LED Driving and Fog Lights are engineered to deliver unmatched brightness, durability, and control - whether you’re navigating city streets, rural highways, or off-road trails. From compact visibility pods to powerhouse driving beams, the Denali light lineup ensures you’re seen and can see - no matter the conditions.

Denali's new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing street-legal fog light to hit the market.

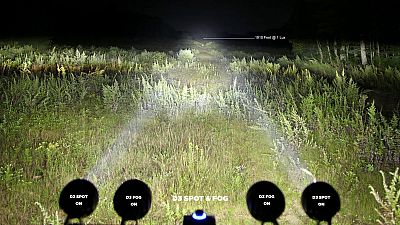

The proprietary fog optics were painstakingly engineered to reach the maximum allowable candela (beam distance) for each of the regulated lighting zones for both the North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that performs as well as it looks, capable of generating a super-crisp fog beam that is 450 feet long by 300 feet wide at 1 lux (per pair)! No other street-legal fog light even comes close!

Our D3 is also available in our signature TriOptic™ beam system that provides a spot and hybrid beam option (in the same kit) for drivers wanting uncompromised light output when you need it most.

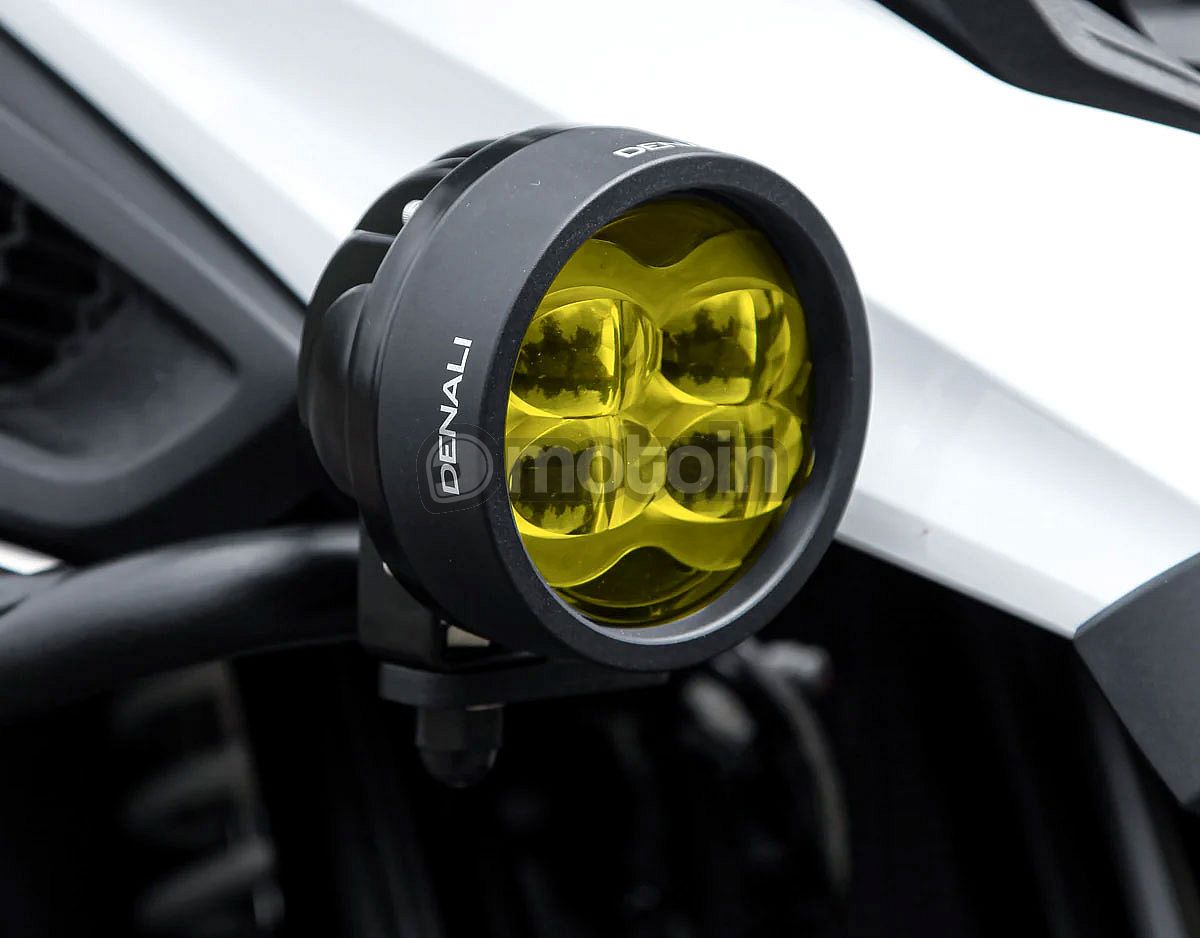

Choose to add an additional set of amber or selective yellow lenses to achieve greater performance in adverse weather conditions or to make your vehicle significantly more visible to other motorists on the road!

Features

• Best in class street-legal fog beam (SAE/DOT & ECE certified)
• High-Intensity Series Cree LEDs outputting 2800 lumens per pod
• DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.

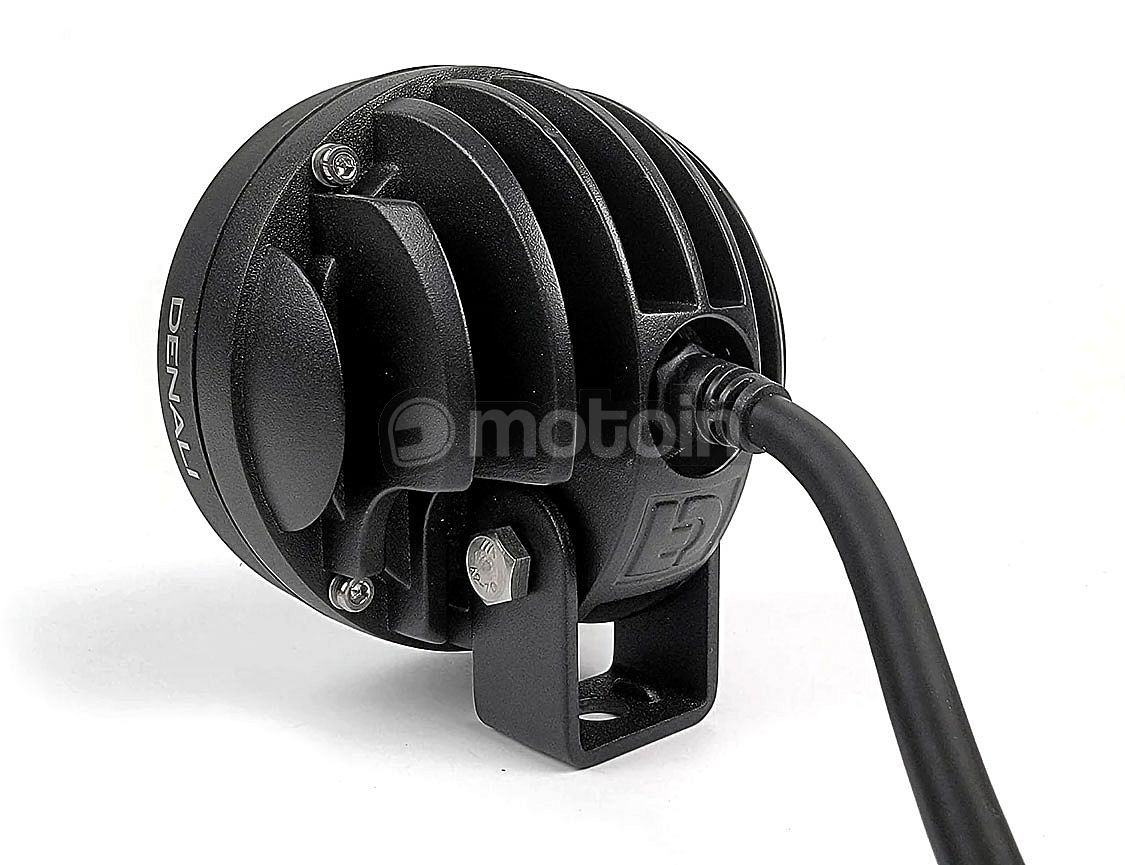

• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included
• Amber & selective yellow lenses available

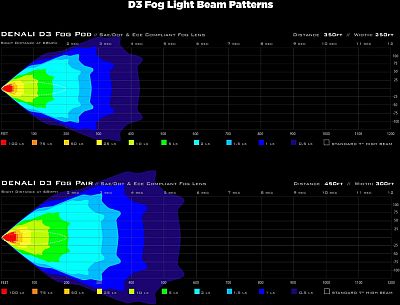

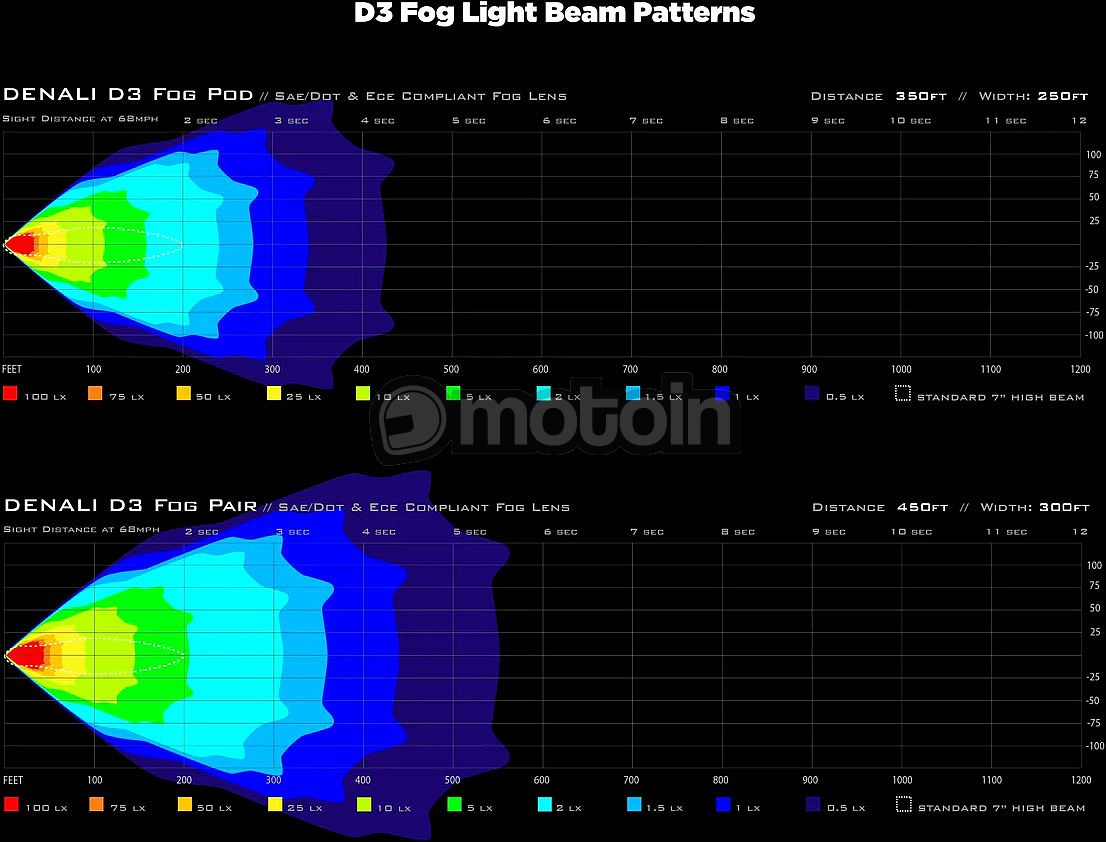

Beam Performance (pair)

• Beam Distance (at 1 lux): 450 feet (137 meters)
• Beam Width (at 1 lux): 300 feet (91 meters)

Specs (single pod)

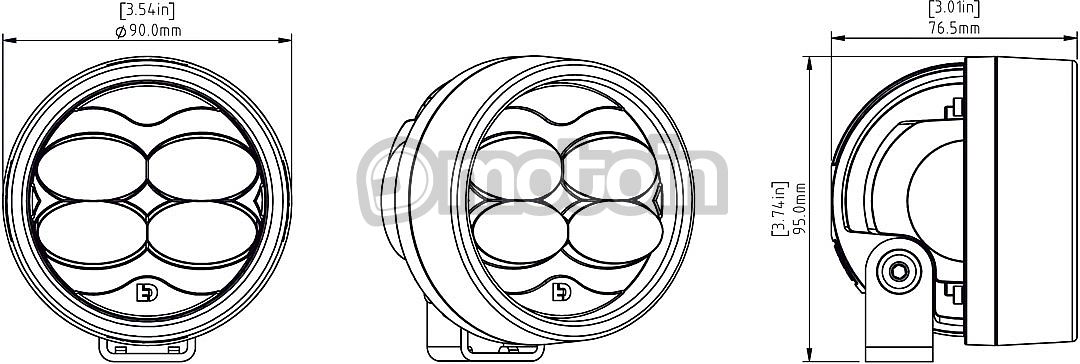

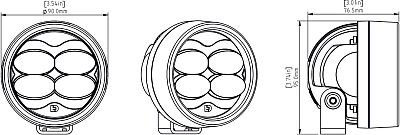

• Pod Size: 3.5" (90 mm) Round x 3.0" (76 mm) Deep
• LED: (4x) 11 Watt Cree XP-P LEDs
• Power Draw: 40 Watts (3.3 Amps)
• Lumens: 2800
• DataDim™ Compatible: Yes
• Operating Voltage: 9-32V DC
• IP67 Waterproof & Submersible
• Fog Lens Certifications: SAE/DOT J583 & ECE R19 (Clear lens only - Amber and yellow lenses do not SAE & ECE certified)

New Wiring & Switching Options

For 2022 Denali has expanded on their standard light kit to deliver a customizable package that allows you to choose the best harness and lighting control option for your vehicle on your budget! Select from the options above or click on the links below to learn more about each of our wiring and switching options.

Please be sure to add one of these options to your light pods to complete your DENALI lighting kit!

• Standard Powersports Harness  - Robust, inexpensive, low-profile waterproof switch - the best option for a basic single intensity install
• Standard Automotive Harness - Robust, added length, and a flush mount illuminated rocker switch for dash mounting
• Premium Powersports Harness - Overmolded wire, and a premium illuminated switch with handlebar mounting kit
• DataDim Module - Add this clever dimmer module to any of the above harnesses to enable your lights to change intensity in sync with your factory high beam switch!
• DialDim Lighting Controller - The top dog in LED lighting control allows you to independently turn on/off and dim two sets of lights from a single halo dimmer switch and unlocks heaps of bonus features like high/low sync, strobe with horn, flash with signal, cancel with signal, electronic fuse setting and even doubles as a battery voltage monitor!

And last but not least Denali also makes a complete accessory manager (The CANsmart Controller) that has dozens of customizable settings for controlling LED lights but can also be used to power and control any electrical accessories from lights and horns to heated grips, dash cams and GPS units.

Light Pod Box Contents - DNL.D3.051

• (1x) D3 LED Fog Light Pod
• (1x) Hinge Mounts with M8 Stainless Steel Hardware
• (1x) Wiring Pigtail

Hybrid Beam

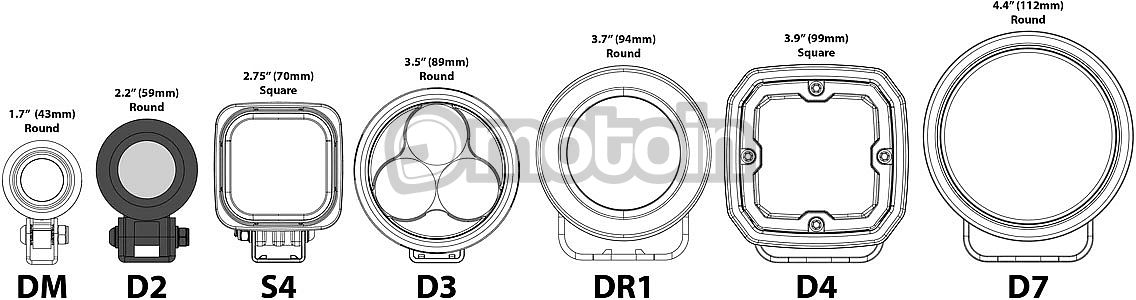

Available on Denali DM, D2, D3, D4, D7 Pro, DL4, DL6, DL9

Hybrid beams give you the best of both; a wide close-range flood and a piercing spot beam in one housing. If you’re only running one set of lights a hybrid beam is the best option.

Opt for this beam to combine spot and flood patterns, delivering balanced visibility both up close and down the road.

Elliptical Flood / Visibility Beam

Available on Denali DM, D2, DL2, D3

Flood and visibility beams cast wide, close range light to illuminate your surroundings and increase visibility to other drivers - ideal for DRL, B6 Brake, and Backup Pods.

Choose this beam for wide-angle coverage that delivers exceptional visibility in close to mid-range distances.

Spot Beam

Available on Denali DM, D2, D3, D4, D7, D7 Pro

Spot beams generate the greatest beam distance by focusing all the LEDs power straight ahead. They are ideal for high speed visibility in dark driving conditions.

Select this beam for focused, long-range light that delivers maximum visibility down the road at night.

DataDim™ LED Dimming Technology

All 2.0 light pods are equipped with a dedicated 3rd-wire dimming circuit so they can use an external signal to reliably control the intensity of the LED chip at the source. Plug in the Denali DataDim™ Controller (sold separately) to enable the DENALI lights to switch between half and full intensity with your vehicle’s original high beam switch.

DrySeal™ Waterproof Protection

From light pods to switches, our DrySeal™ technology uses potted wire cavities and molded gaskets to create a fully submersible, watertight seal - engineered to endure the harshest riding conditions. Flush or bar mount, the rugged, illuminated switch included with every kit.
